TL-SL1218MP complies with the 802.3af/at PoE+ standard, supporting up to 30W power supply on each PoE port. The total high PoE power budget of up to 192W for the 16 PoE ports, making it ideal for small to medium business surveillance systems.
TL-SL1218MP is a special designed PoE switch for IP surveillance applications. PoE switch makes surveillance installation simpler, safer and less expensive. With the extend mode, the PoE transmission distance reaches up to 250m* which makes it perfect for IP Camera deployment in large area coverage.
To guarantee the quality of sensitive applications like video monitor, TL-SL12128MP offers higher priority options for those IPC connected ports.
Highlights:

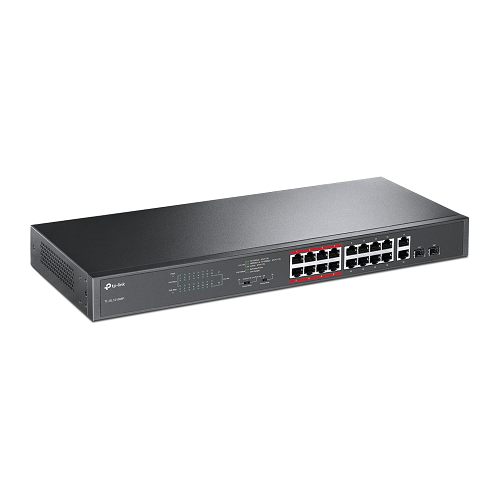

- 16 PoE+ 10/100Mbps RJ45 ports, 2 Gigabit RJ45 ports and 2 combo Gigabit SFP slots
- Up to 250m data and power transmission under extend mode specially designed for surveillance system
- Priority mode for port1-8 to guarantees the quality of sensitive applications like video monitor
- High PoE power budget with up to 30W for each PoE port and 192W for all PoE ports
- Easy to use, with no configuration and installation needed
Specifications:
HARDWARE FEATURES |
---|
Interface | 16 PoE+ 10/100Mbps RJ45 Ports 2 10/100/1000Mbps RJ45 Ports 2 Combo Gigabit SFP Slots |
---|
Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-X MMF, SMF |
---|
Fan Quantity | 2 Fans |
---|
Physical Security Lock | Yes |
---|

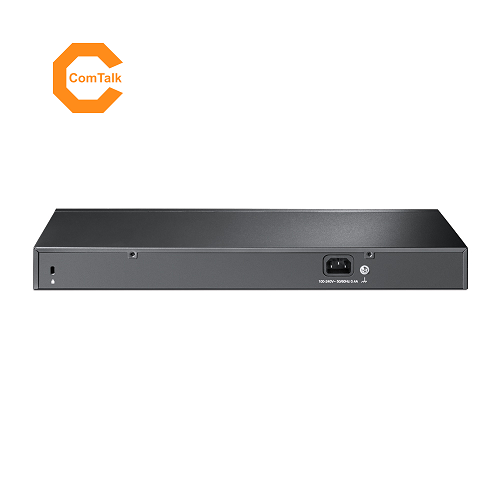

Power Supply | 100-240V AC, 50/60 Hz |
---|
Backup Bandwidth | 7.2 Gbps |
---|
PoE+ Ports(RJ45) | Standard: 802.3at/802.3af compliant PoE Ports: Port1- Port16 PoE Power Budget: 192W |
---|
Mac Address Table | 8K |
---|
Dimensions ( W x D x H ) | 17.3 × 7.1 × 1.7 in. (440 × 180 × 44 mm) |
---|
Max Power Consumption | 18.73 W (220/50Hz. no PD connected) 217.22 W (220/50Hz. with 192W PD connected) |
---|
Max Heat Dissipation | 63.89 BTU/h (no PD connected) 741.15 BTU/h (with 192W PD connected) |
---|
SOFTWARE FEATURES |
---|
Advanced Features | Compatible With IEEE 802.3at/af Compliant PDs Port Priority Mode Extend Mode (Up to 250m PoE power supply and data transmission) Mac Address Auto-Learning And Auto-Aging IEEE802.3x Flow Control |
---|
Transmission Method | Store-And-Forward |
---|
OTHERS |
---|
Certification | CE, FCC, RoHS |
---|
Package Contents | TL-SL1218MP, Power Cable, Installation Guide, Two mounting brackets and the fittings |
---|
Environment | Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5%~90% non-condensing |
---|
Warranty:
3 Years
