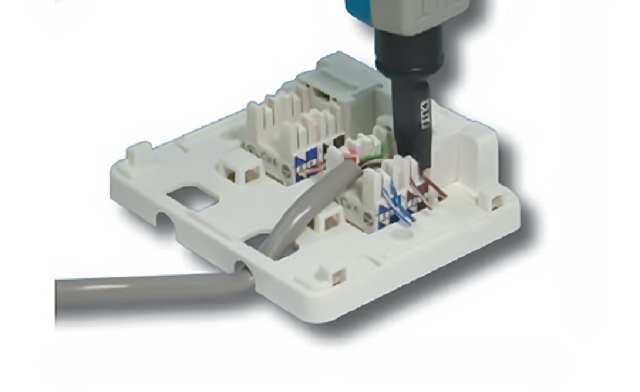

Dintek 1 Port RJ45 Surface Mount Box with Spring Shutter

Product Code: ACC-DT-1301-02012

MYR6.50

Color
Size

Brand: Dintek

  • Share

Get shipping estimates

Country
State
Shipping Method

When in-wall Ethernet jacks faceplate are not an available option, expand your network with a DINTEK surface mount box. These handy units come in both loaded and unloaded versions. The surface mount box provides a clean and easy option for network expansion. Loaded surface mount boxes come pre-loaded with either PowerPRO Cat5e or PowerMAX Cat.6 RJ45 keystone jacks inside to easily connect a device to your network.



Applications:

  • Voice; T1; ISDN
  • 10BASE-T (IEEE 802.3)
  • 16Mbps Token Ring (IEEE802.5)
  • 100VG-AnyLAN (IEEE802.12)
  • 100BASE-T Ethernet (IEEE802.3)
  • 155/622Mbps ATM
  • 1000Mbps Gigabit Ethernet
  • VDSL



Standards:

  • ISO/IEC11801
  • ANSI/TIA Standard 568-2.D
  • CENELEC EN 50173



Included Items:

  • ID label position
  • Spring Shutter
  • Adhesive Backing
  • Computer & Telephone Icons



Material Construction:

  • Housing: High-impact, FLAME-PETARDANT plastic
  • Standard: UL94V-0 rated



Dimension:

65 x 48 x 27 mm



Note: keystock jack not included, sold separately.
