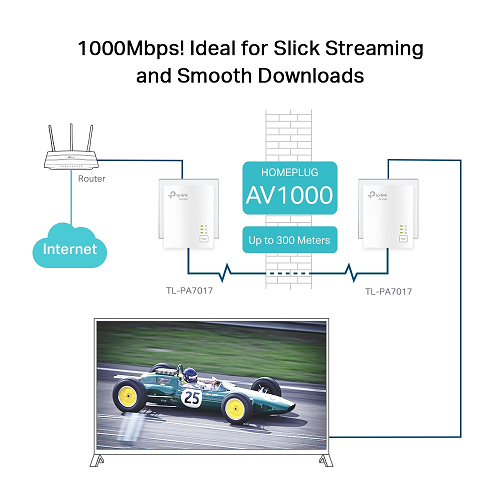

Using advanced HomePlug AV2 technology, TL-PA7017 KIT ensures stable and high-speed wired connection, providing data transmissions of up to 1000 Mbps* over the electrical wiring for ranges up to 300 meters. Stream in HD, game online and download large files without interruption thanks to reliable powerline links.
Highlights:
- HomePlug AV2 Standard - high-speed data transfer rates of up to 1000 Mbps, supporting all your online needs
- Gigabit port - provides secure wired networks for desktops, smart TVs or games consoles

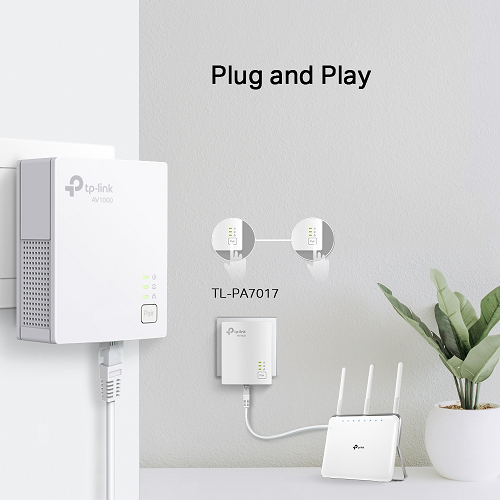

- Plug and play - allows setup of your powerline network in minutes, so you can enjoy fast, seamless wired connections right away
- Patented Power - Saving Mode - automatically reduces power consumption by up to 85%
Specifications:
| HARDWARE FEATURES |
|---|
| Plug Type | EU, UK, US |
|---|
| Standards and Protocols | HomePlug AV2, HomePlug AV, IEEE 1901, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab |
|---|
| Interface | Gigabit Ethernet Port |
|---|
| Button | Pair/Reset button |
|---|
| Power Consumption | Maximum: 2.7W (220V/50Hz) Typical: 2.3W (220V/50Hz) Standby: 0.5W (220V/50Hz) |
|---|
| LED Indicator | PWR, PLC, ETH |
|---|
| Dimensions ( W x D x H ) | 2.6*2.0*1.1 in (65*52*28.5mm) |
|---|
| Range | 300 Meters over electrical circuit |
|---|
| SOFTWARE FEATURES |
|---|
| Modulation Technology | OFDM (PLC)
|
|---|
| Encryption | Powerline Security: 128-bit AES
|
|---|
| OTHERS |
|---|
| Certification | CE, RoHS
|
|---|

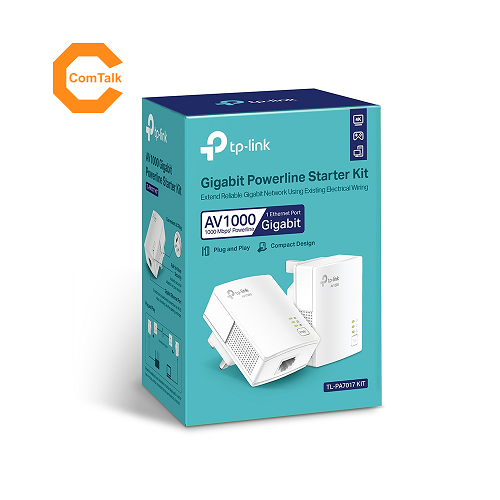

| Package Contents | Powerline Ethernet Adapter 6.5 ft. (2 m) Ethernet cable (RJ45) Quick Installation Guide
|
|---|
| System Requirements | Windows 2000/XP/2003/Vista, Windows 7/8/8.1, Mac, Linux
|
|---|
| Environment | Operating Temperature: 0°C~40°C (32°F ~104°F) Storage Temperature: -40°C~70°C (-40°F ~158°F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
|---|
Warranty:
3 Years
