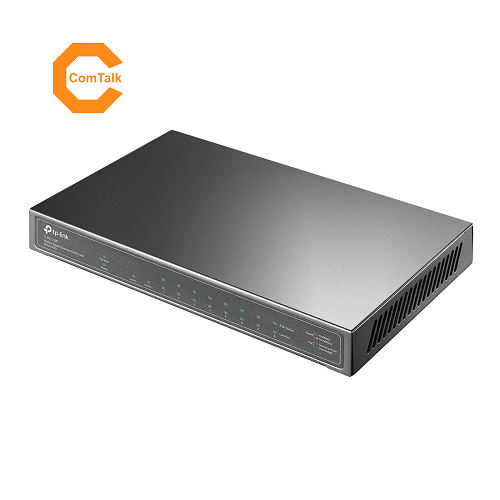

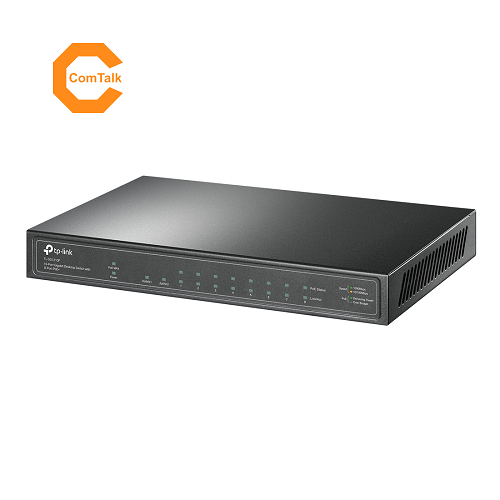

TP-Link TL-SG1210P 10-Port Gigabit Desktop Switch with 8-Port PoE+

Product Code: NSW-TPL-TLSG1210P

+ Add to Wishlist

MYR379.00

Color
Add To Cart

Brand: TP-Link

  • Share

Get shipping estimates

Country
State
Shipping Method

Highlights:
  • 9 10/100/1000Mbps RJ45 ports, 1 Gigabit SFP port
  • With 8 PoE+ ports, transfers data and power on one single cable
  • Working with IEEE 802.3af/at compliant PDs, expands home and office network
  • 802.1p/DSCP QoS enable smooth latency-sensitive traffic
  • High PoE power budget with up to 30W for each PoE port and 63W for all PoE ports
  • Easy to use, with no configuration and installation needed

Specifications:

HARDWARE FEATURES
Interface8 PoE+ 10/100/1000Mbps RJ45 Ports
1 10/100/1000Mbps RJ45 Port
1 Gigabit SFP Slot
Network Media10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-X MMF, SMF
Fan QuantityFanless
Physical Security LockYes
Power SupplyExternal Power Adapter(Output: 53.5VDC / 1.31A)
Backup Bandwidth20 Gbps
Packet Forwarding Rate14.88 Mpps
PoE+ Ports(RJ45)Standard: 802.3at/802.3af compliant
PoE Ports: Port1- Port 8
PoE Power Budget: 63W
Mac Address Table4K
Jumbo Frame16 KB
Switching Capacity20 Gbps
Dimensions ( W x D x H )209 × 126 × 26 mm
Max Power Consumption7.11 W (220/50Hz. no PD connected)
78.13 W (220/50Hz. with 63W PD connected)
Max Heat Dissipation24.25 BTU/h (no PD connected)
266.42 BTU/h (with 63W PD connected)
SOFTWARE FEATURES
Advanced FeaturesCompatible With IEEE 802.3af/at Compliant PDs
EEE802.3x Flow Control
802.1p/DSCP QoS
IGMP Snooping
Transmission MethodStore-And-Forward
OTHERS
CertificationCE, FCC, RoHS
Package ContentsTL-SG1210P, Power Adapter, Installation Guide
EnvironmentOperating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5%~90% non-condensing

Warranty:
3 Years
