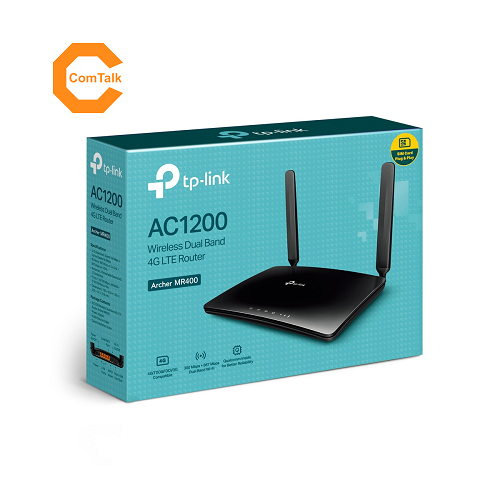

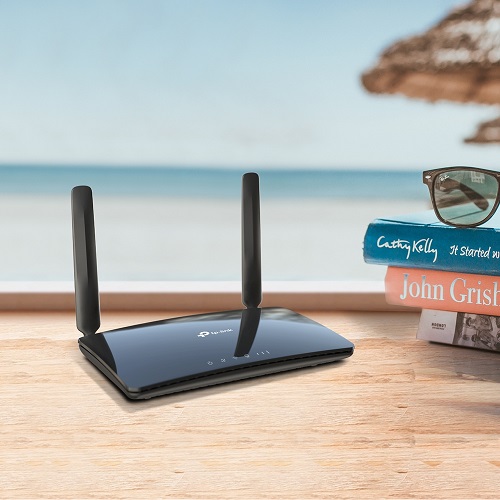

TP-Link Archer MR400 AC1200 Wireless Dual Band 4G LTE Router

Product Code: WRT-TPL-AMR400

MYR435.00

Color

Brand: TP-Link

  • Share

Get shipping estimates

Country
State
Shipping Method

Highlights:

  • Shares your 4G LTE network with multiple Wi-Fi devices and enjoy download speeds of up to 150Mbps
  • Powerful, integrated antennas provide stable wireless connections and better coverage
  • Requires no configuration, just insert a SIM card and turn it on to enjoy a fast wireless connection
  • Creates simultaneous dual band Wi-Fi networks, with maximum speeds of up to 300Mbps on the 2.4GHz band and 867Mbps on the 5GHz band

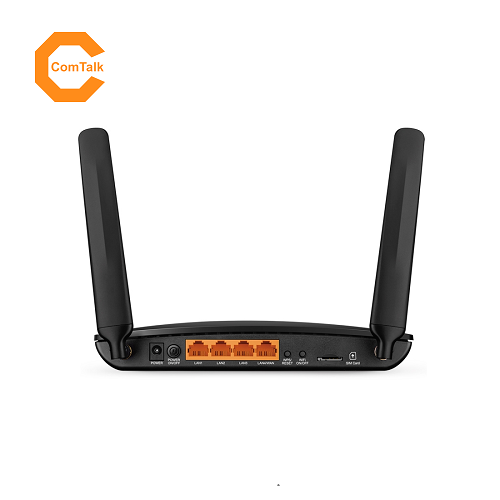

  • Offers options and flexibility with the LAN/WAN port, allowing you to choose your connection type

Specifications:

HARDWARE FEATURES
Interface3 10/100Mbps LAN Ports, 1 10/100Mbps LAN/WAN Port,
1 Micro SIM Card Slot
ButtonWPS/Reset Button, WiFi On/Off Button, Power On/Off Button
External Power Supply12V/1A
Dimensions ( W x D x H )7.95 x 5.71 x 1.34 in. (202 x 145 x 34 mm)
Antenna2 Internal 4G LTE Antennas,
2 Fixed External WiFi Antennas
WIRELESS FEATURES
Wireless StandardsIEEE 802.11ac/n/a 5GHz, IEEE 802.11b/g/n 2.4GHz
Frequency2.4GHz and 5GHz
Signal Rate300Mbps at 2.4GHz, 867Mbps at 5GHz
Reception Sensitivity5GHz: 11a 54M: -74dBm
11ac HT20: -67dBm
11ac HT40: -64dBm
11ac HT80 : -60dBm
11n HT20: -71dBm
11n HT40: -70dBm

2.4G: 11g 54M: -76dBm
11n HT20: -73dBm
11n HT40: -67dBm
Transmit PowerCE: <20dBm(2.4GHz), <23dBm(5GHz)
Wireless FunctionsEnable/Disable Wireless Radio, WMM,
Wireless Statistics
WAN FailoverYes
Wireless Security64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions
Network Type (V2)4G: FDD-LTE B1/B3/B7/B8/B20 (2100/1800/2600/900/800MHz)
TDD-LTE B38/B39/B40/B41 (2600/1900/2300/2500MHz)
3G: DC-HSPA+/HSPA+/HSPA/UMTS B1/B8 (2100/900MHz)
Network Type4G: FDD-LTE B1/B3/B7/B8/B20 (2100/1800/2600/900/800MHz)
TDD-LTE B38/B39/B40/B41 (2600/1900/2300/2500MHz)
3G: DC-HSPA+/HSPA+/HSPA/UMTS B1/B8 (2100/900MHz)
2G: EDGE/GPRS/GSM Quad Band (850/900/1800/1900MHz)
SOFTWARE FEATURES
Quality of ServiceBandwidth Control
Operating Modes3G/4G Router, Wireless Router
WAN TypeDynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)
ManagementAccess Control, Local Management, Remote Management
reboot schedule
DHCPServer, Client, DHCP Client List, Address Reservation
Port ForwardingVirtual Server, Port Triggering, UPnP, DMZ
Dynamic DNSDynDns, NO-IP
VPNPPTP VPN, IPSec VPN , OpenVPN
Access ControlParental Control, Local Management Control
Firewall SecurityDoS, SPI Firewall, IP Address Filter/Domain Filter,
IP and MAC Address Binding
ProtocolsSupports IPv4 and IPv6
Guest Network2.4GHz guest network x 1, 5GHz guest network x 1
IPSec VPNSupports up to 10 IPSec VPN tunnels
OTHERS
CertificationCE, RoHS
Package ContentsAC1200 Wireless Dual Band 4G LTE Router, Archer MR400
RJ45 Ethernet Cable
Power Adapter
Quick Installation Guide
System RequirementsMicrosoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10
MAC OS, NetWare, UNIX or Linux

Internet Explorer 11, Firefox 12.0, Chrome 20.0,
Safari 4.0 browsers or higher, or other Java-enabled browsers
Micro SIM Card
EnvironmentOperating Temperature: 0℃~40℃ (32℉ ~104℉)
Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

Warranty:
3 Years
