Highlights:
Features:
Think Green

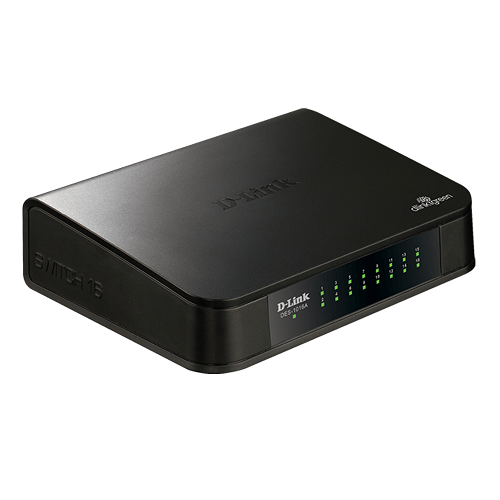

The D-Link DES-1016 16-port 10/100 Switch is part of D-Link’s new series of SOHO devices that make use of D-Link’s Green Technology, providing energy savings, reduced heat, and a longer product life without sacrificing performance or functionality. An energy-efficient power adapter (EnergyStar Level V qualified), minimized use of harmful substances (RoHS compliant), and recyclable packaging make this switch truly environmentally friendly.
Conserves energy
The DES-1016 16-port 10/100 Switch helps you conserve energy automatically through several methods. It automatically powers down ports that have no link, allowing the switch to save substantial amounts of power by cutting power usage for unused ports or ports connected to computers that have been shut down. The switch also conserves energy by adjusting power usage according to different cable lengths of connected devices without affecting performance.
Environmentally Friendly
The DES-1016 was designed with the environment in mind, and is compliant with Energy Star Level V, as well as with the stringent CEC and MEPS regulations that require the use of energy efficient power adapters. The switch is also built to follow RoHS standards to minimize use of hazardous materials, and uses recyclable packaging that helps reduce waste, complying with the WEEE directive.
Specifications:
| Key Features | Built-in D-Link Green Technology Inexpensive Fast Ethernet solution for Home/SOHO Sixteen 10/100 Mbps Fast Ethernet ports 3.2 Gbps switching fabric Auto MDI/MDIX crossover for all ports Secure store-and-forward switching scheme Full/half-duplex for Ethernet/Fast Ethernet speeds IEEE 802.3x Flow Control Supports 9,216 Byte Jumbo Frames RoHS compliant Plug-and-play installation | |
| Standards | IEEE 802.1P QoS support IEEE 802.3 10BASE-T Ethernet (twistedpair copper) IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper) IEEE 802.3az Energy-Efficient Ethernet (EEE) ANSI/IEEE 802.3 NWay auto-negotiation IEEE 802.3x Flow Control | |
| Protocol | CSMA/CD | |
| Data Transfer Rates | Ethernet: 10 Mbps (half duplex) 20 Mbps (full duplex) Fast Ethernet: 100 Mbps (half duplex) 200 Mbps (full duplex) | |
| Topology | Star | |
| Network Cables | 10BASE-T: UTP CAT 3, 4, 5/5e (100 m max. EIA/TIA-586 100-ohm STP (100 m max.) 100BASE-TX, 1000BASE-T: UTP CAT 5/5e (100 m max.) EIA/TIA-568 100-ohm STP (100 m max.) | |
| Media Interface Exchange | Auto MDI/MDIX adjustment for all ports | |
| LED Indicators | Per port: Link/Activity/Speed Per device: Power | |
| Transmission Method | Store-and-forward | |
| MAC Address Table | 8K entries per device | |
| MAC Address Learning | Automatic update | |
| Packet Filtering/Forwarding Rates | Ethernet: 14,880 pps per port Fast Ethernet: 148,800 pps per port | |
| RAM Buffer | 256 KBytes per device | |
| DC Input | Switching 5 V / 1 A Level “V” Power Adapter | |
| Power Consumption | Power On (Standby): AC input: 2.36 watts DC input: 1.2 watts Maximum: AC input: 2.69 watts DC input: 1.6 watts | |
| Operating Temperature | 0 to 40 ˚C (32 to 104 ˚F) | |
| Storage Temperature | -10 to 70 ˚C (14 to 158 ˚F) | |
| Operating Humidity | 10% to 90% RH non-condensing | |
| Storage Humidity | 5% to 90% RH non-condensing | |
| Device Dimensions (W x D x H) | 155.7 x 122 x 41 mm (6.13 x 4.80 x 1.61 inches) | |
| Certifications | CE Class B FCC class B CB RoHS EuP |
Warranty:
3 Years
