Highlights:
- Blazing Fast
- Plug and Play
- Compact Design
Features:

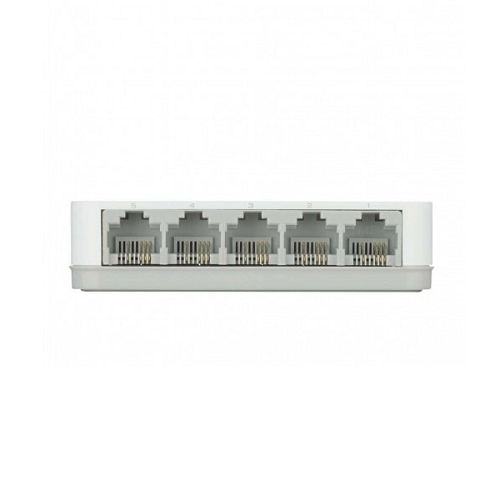

Auto-Sensing 10/100 Ports
The DES-1005A uses auto-sensing 10/100 Mbps ports, allowing a small workgroup to flexibly connect to Ethernet and Fast Ethernet devices to create an integrated network. These ports detect the network speed and auto-negotiate between 10BASE-T and 100BASE-TX, as well as between full and half-duplex, allowing you to get the maximum speed possible for each device connected to your network.
Auto MDI/MDIX Crossover
All ports support automatic MDI/MDIX crossover, eliminating the need for crossover cables or uplink ports. Each port can be plugged directly to a server, hub, router, or switch using regular straight-through twisted-pair Ethernet cables.
Flow Control for Secure Transmission
802.3x flow control on each port minimizes dropped packets when the port's receiving buffer is full. This gives you a more reliable connection for all of your connected devices.
Specifications:
| Standards | IEEE 802.3 10BASE-T Ethernet (twisted-pair copper) ANSI/IEEE 802.3 NWay auto-negotiation IEEE 802.3x flow control IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper) IEEE 802.3az EEE power saving | |
| Switching Fabric | 1 Gbps switching fabric | |
| Topology | Star | |
| Protocol | CSMA/CD | |
| Data Transfer Rates | Ethernet 10 Mbps (half duplex) 20 Mbps (full duplex) Fast Ethernet 100 Mbps (half duplex) 200 Mbps (full duplex) | |
| Media Interface Exchange | Auto MDI/MDIX adjustment for all ports | |
| Network Cables | 10BASE-T: UTP CAT 3/4/5/5e (100 m max.) EIA/TIA-586 100-ohm STP (100 m max.) 100BASE-TX UTP CAT 5/5e (100 m max.) EIA/TIA-568 100-ohm STP (100 m max.) | |
| LED Indicators | Per port: Link/Activity Per device: Power | |
| Transmission Method | Store-and-forward | |
| MAC Address Table | 2K entries per device | |
| MAC Address Learning | Automatic update | |
| Packet Filtering/Forwarding Rates | Ethernet: 14,880 pps per port Fast Ethernet: 148,800 pps per port | |
| RAM Buffer | 48 KB per device | |
| Dimensions | 87 x 47.85 x 21.7mm (3.42 x 1.88 x 0.85 inches) | |
| DC Input | External 5V/0.55A power adapter | |
| Power Consumption | Power On (Standby): DC input: 0.1 watts AC input: 0.69 watts Maximum: DC input: 0.9 watts AC input: 1.6 watts | |
| Heat Dissipation | Power On (Standby) AC input: 2.355 BTU/h Maximum AC input: 5.461 BTU/h | |
| Temperature | Operating: 0 to 40 ˚C (32 to 104 ˚F) Storage: -10 to 70 ˚C (14 to 158 ˚F) | |
| Humidity | Operating: 10% to 90% RH non-condensing Storage: 5% to 90% RH non-condensing | |
| Certifications | FCC Class B CE Class B UL C-Tick Class B CB |
Warranty:
3 Years
