Highlights:
- Omni-Directional Reading of 1D/2D and PDF Barcodes
- Easy Scanner Management with 123Scan and Scanner Management Service (SMS)
- Decodes Problematic Barcodes with PRZM Software Decode Algorithms

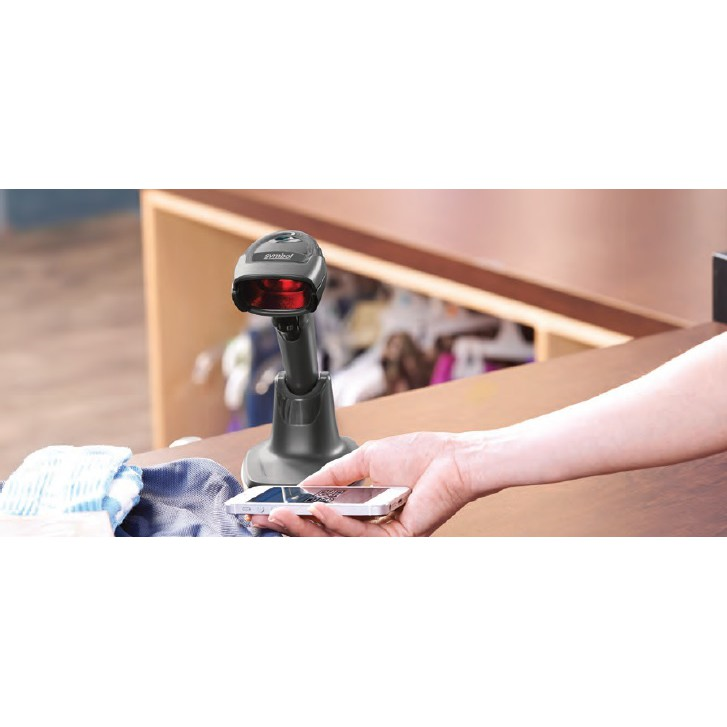

- Scan Stand Mode
- Optimized Out-of-Box Configuration Settings
Specifications:
PHYSICAL CHARACTERISTICS

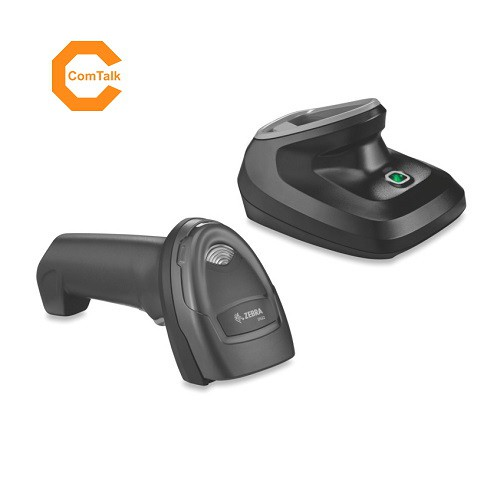

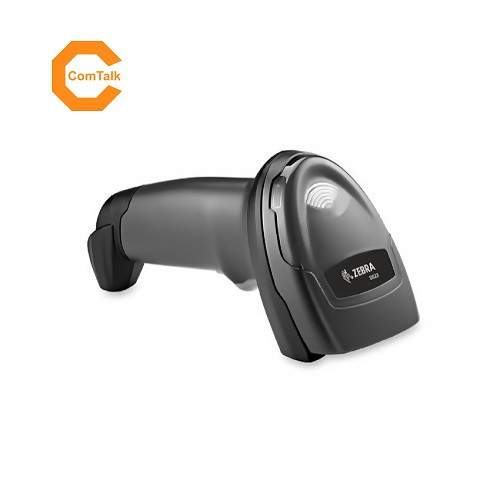

Cordless DS2278:
6.9 in. H x 2.6 in. W x 3.9 in. D
17.5 cm. H x 6.6 cm. W x 9.9 cm. D
Presentation Cradle:
2.8 in. H x 3.7 in. W x 4.8 in. D
7.1 cm. H x 9.4 cm. W x 12.2 cm. D
Weight:
Cordless DS2278: 214 g
Presentation Cradle: 151 g
Input Voltage Range:
DS2208/DS2278 and Cradle: 4.5 to 5.5 VDC Host Powered; 4.5 to 5.5 VDC External Power Supply
Current:
Corded DS2208 Operating Current at Nominal Voltage (5.0V): 250 mA (typical). (Note: Auto-Aim and Illumination on Acquiring Image)
Corded DS2208 Standby Current (idle) at Nominal Voltage (5.0V): 150 mA (typical). (Note: Auto-Aim On)
Presentation Cradle and Micro USB Cable: 500 mA (typical) Standard USB; 1100 mA (typical) BC 1.2 USB
Color:
Nova White, Twilight Black
Supported Host Interfaces:
USB, RS232, Keyboard Wedge, TGCS (IBM) 46XX over RS485
Keyboard Support:
Supports over 90 international keyboards
User Indicators:
Direct Decode Indicator; good decode LEDs; Rear view LEDs; beeper (adjustable tone and volume)
PERFORMANCE CHARACTERISTICS
Motion Tolerance (Handheld):
Up to 5 in./13 cm. per second for 13 mil UPC
Swipe Speed (Hands-Free):
Up to 30.0 in./76.2 cm. per second for 13 mil UPC
Light Source:
Aiming Pattern: Linear 624nm Amber LED
Illumination:
645nm Super-Red LEDs
Imager Field of View:
32.8° H x 24.8° V Nominal
Image Sensor:
640 x 480 pixels
Minimum Print Contrast:
25% minimum reflective difference
Skew/Pitch/Roll Tolerance:
+/- 65°; +/- 65°; 0-360°
Minimum Element Resolution:
Code 39 - 4.0 mil; Code 128 - 4.0 mil; Data Matrix - 6.0 mil; QR Code - 6.7 mil
RADIO SPECIFICATIONS
Bluetooth Radio:
Standard Bluetooth Version 4.0 with BLE: Class 2 33 ft. (10.0m), Serial Port and HID Profiles; output power adjustable down from 2.0 dBm in 8 Steps
BATTERY
Battery Capacity/ Battery Type:
2,400 mAh Li-Ion Battery
Scans Per Battery Charge:
100,000 scans at 60 Scans per Minute or 60,000 scans at 10 Scans per Minute
Operating Time Per Full Charge:
100.0 Hours
Charge Time (from Empty):
14 Hour Shift Hours:
Standard USB - 4 Hours
BC1.2 USB - 2 Hours
External 5V Source - 0.5 Hour
Micro USB - 1 Hour
Full Charge Hours:
Standard USB - 25 Hours
BC1.2 USB - 6 Hours
External 5V Source - 6 Hours
Micro USB - 11 Hours
DECODE CAPABILITIES:
1D
Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1
DataBar, Base 32 (Italian Pharma)
2D
PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Chinese Sensible (Han
Xin), Postal Codes
P/N: DS2278-SR7U2100PRW

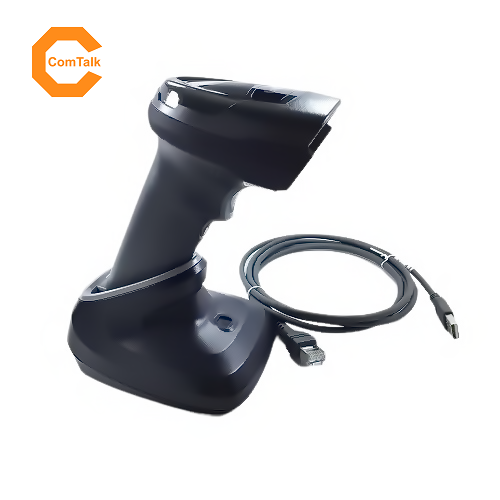

Package Contents:
1 x DS2278-SR00007ZZWW Scanner
1 x CBA-U21-S07ZBR Shielded USB Cable
1 x CR2278-PC10004WW Cradle
1 x Manual
Warranty:
3 Years
