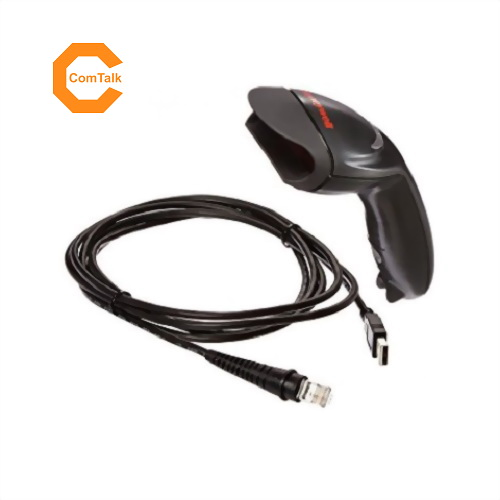

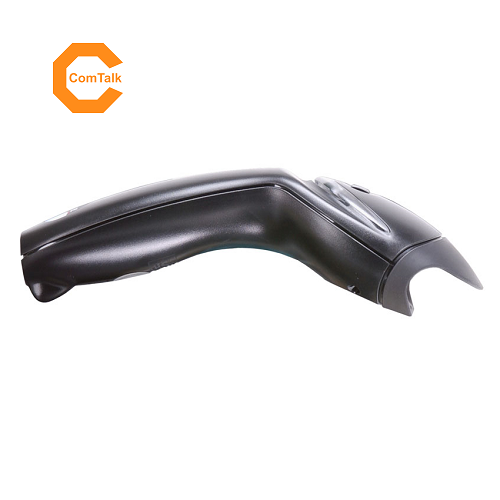

Honeywell Eclipse MS5145 Handheld Barcode Scanner

Product Code: BCS-HNW-MK5145-31A38K



Brand: Honeywell

  • Share

Get shipping estimates

Shipping Method

Honeywell's EclipseTM 5145 is a low cost laser-based alternative to CCD scanners. Its compact form factor and high end feature set simplify its use in a variety of applications at the press of a button. Eclipse is a single-line, hand-held laser scanner. Equipped with Honeywell's patented CodeGate® technology, Eclipse can be used in a wide variety of applications. CodeGate® technology allows the user to easily target the desired bar code and complete data transmission with the press of a single button. This makes Eclipse a perfect selection for menu scanning, point-of-sale, document processing and inventory control.

With Honeywell’s state-of-the-art scanning technology, the Eclipse 5145 has a longer working range and a wider scan field than a typical CCD. The width of the scan line grows as the scanner moves further away from bar codes. CodeSense® is a unique feature employed by Eclipse in the absence of infrared object detection. It provides the user with a pulsing laser line for bar code detection. When a bar code is detected, the laser line switches to a constant state to allow for scanning via CodeGate®.


Features & Benefits:

CodeGate®: Ideal for menu scanning applications

CodeSense®: Automatically switches from “pulse mode” to continuous beaming when a bar code is detected

Powerlink cables: Uses the same user-replaceable cables and power supplies as Voyager® and Orbit®

Flash ROM: Update firmware from any PC via MetroSet2® software provided by Honeywell

OPOS and JPOS system compatible: Easily adaptable to any end-user system environment



Product Line:Eclipse
Product Model:MS5145-38-3
Product Name:Eclipse 5145 Single-Line Laser Scanner
Product Type:Handheld Barcode Scanner
Host Interface:USB
Additional Information:

Supported Interface: USB

Certifications & Standards:
  • CE
  • cUL
Green Compliance Certificate/Authority:
Green Compliant:Yes
Package Contents:
  • Eclipse 5145 Single-Line Laser Scanner
  • 2.9m Straight USB Type A Cable
  • Documentation
Physical Characteristics
Height:50.8 mm
Length:170.2 mm
Weight (Approximate):99.2 g
Width:63.5 mm
Power Description
Input Voltage:5 V DC
Technical Information
Bar Code Dimension:1D
Bar Code Symbology Supported:Reads standard 1D and GS1 DataBar symbologies
Connectivity Technology:Cable
Depth of Field:0 nm - 101.60 mm@0.26 mm
 0 nm - 139.70 mm@0.33 mm
 0 nm - 50.80 mm@0.13 mm
 0 nm - 76.20 mm@0.19 mm
 25.40 mm - 177.80 mm@0.66 mm
Light Source:Laser
Maximum Scan Resolution:0.10 mm
Scan Pattern:Single Line


Part Number: MK5145-31A38K



3 Years
