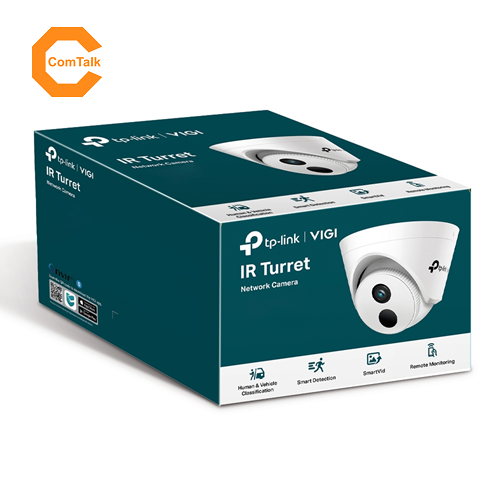

TP-Link VIGI C420I 2MP IR Turret Network Camera (Lens: 4mm / 2.8mm) | CCTV Camera

Product Code: CAM-TPL-VIGI-C420I

MYR125.00

Color
Size

Brand: TP-Link

  • Share

Get shipping estimates

Country
State
Shipping Method

Highlights:

  • 2MP Full-High Definition: The VIGI C420I camera comes with 2MP — more than enough pixels to pick up some of the more discrete details.
  • Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
  • Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.

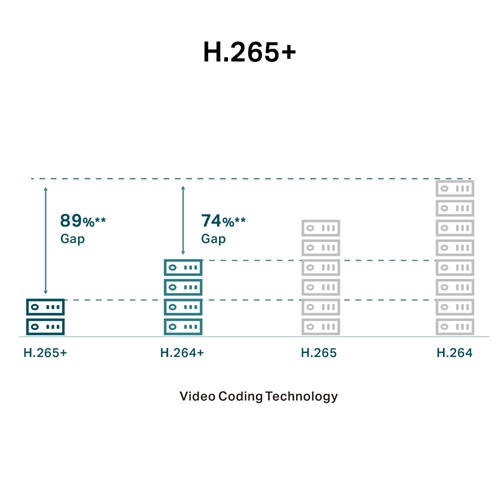

  • H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
  • Smart Video Enhancement: VIGI's professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.
  • Corridor Mode: Allows you to change the image aspect ratio from 16:9 to 9:16, and helps to monitor long and narrow areas.

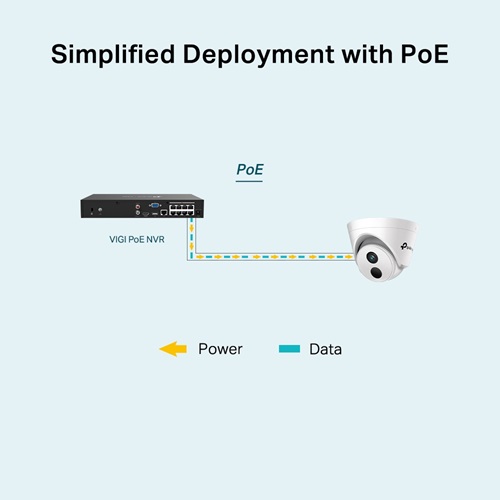

  • Simplified Deployment with PoE: Easily connect and power your PoE camera with one RJ45 cable transmitting both data and power. No power adapter needed.

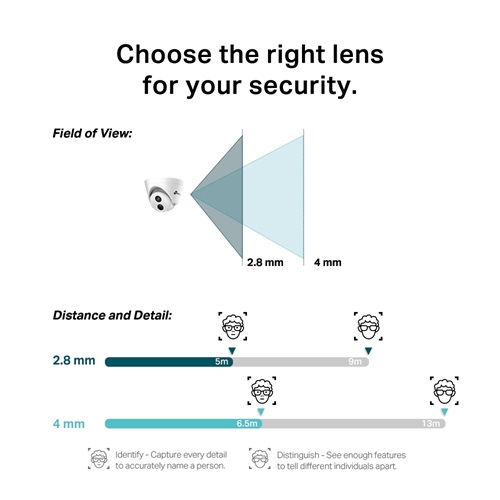

  • 2.8/4 mm Lens: Whether you need a wide-angle lens to cover enclosed spaces or a higher millimeter lens for longer distances in open spaces, C420I comes with two different lens types to better suit your security needs.
  • Flexible Management: Take full control over your security via three management methods: NVR UI, VIGI app, and VIGI Security Manager.

Specifications:

CAMERA
Image Sensor1/3” Progressive Scan CMOS
Lens2.8 mm/ 4 mm
Day/Night SwitchUnified/ Scheduled/ Auto
Digital Noise Reduction3D DNR
WDRDWDR
IR Working Distance30m
Shutter Speed1/3 to 1/10000 s
Aperture2.8 mm: F2.2
4 mm: F2.0
Lens MountM12
Viewing Angle2.8mm: 88.2°/48.7°/106.5°(H/V/D)
4mm: 74.6°/41.3°/88.1°(H/V/D)
Slow ShutterYes
Minimum IlluminationColor: 0.1 Lux; 0 Lux with IR
Day/Night MechanismIR Cut Filter
NETWORK
ProtocolTCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS,
RTSP, NTP, UPnP UDP, SSL/TLS
ONVIFYes
APIONVIF
Simultaneous Live View3 Main Streams & 3 Sub-Streams
ClientVIGI App, VIGI Security Manager, VIGI NVR
Web BrowserGoogle Chrome® 57 and above
Firefox® 52 and above
Safari® 11 and above
Microsoft® Edge 91 and above
CloudYes
SecurityPassword Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
GENERAL
Operating Temperature-30–60 °C
Storage Temperature-40–60 °C
Operating Humidity95% or Less (Non-Condensing)
Storage Humidity95% or Less (Non-Condensing)
Package ContentsVIGI Network Camera
Quick Start Guide
Mounting Accessories
Dimensions( H X W X D )123 × 123 × 83 mm
MaterialPlastic
General FeaturesTwo Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening
Net Weight0.19 Kg
Gross Weight0.34 Kg
Power ConsumptionPoE: Class 0
Power SupplyPoE (802.3af/at, class 0)
ProtectionN/A
Product Dimensions (L x W x H)123× 83× 123 mm
CertificationsCE/BSMI/VCCI/ONVIF
INTERFACES
Network Interface1 RJ45 10/100M Self-Adaptive Ethernet Port
AlarmN/A
Reset ButtonN/A
PowerN/A
Button-
Video Output-
On-board StorageN/A
Built-in MicrophoneN/A
Built-in SpeakerN/A
AudioN/A
ALARM AND EVENT MANAGEMENT
Smart EventHuman & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection
Basic EventMotion Detection, Video Tampering Detection, Exception ( Illegal Login)
Alarm LinkageMessage Push
Linkage MethodN/A
Output NotificationMessage Push
VIDEO/IMAGE
Video CompressionMain Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264
Frame Rate & ResolutionsMain Stream:
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 1920x1080, 1280x960, 1280x720
Sub-Stream:
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 704x576, 640x480, 352x288, 320x240
Max. Resolution2MP (1920 × 1080)
Video StreamingMain Stream
Sub-Stream
Image SettingsMirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation(90°/270°)
Image EnhancementBLC/3D DNR/HLC/SmartIR
Video Bit Rate64 Kbps to 4 Mbps
Day/Night SwitchDay/Night/Auto/Schedule
SMART FEATURE-SET
Smart EventHuman & Vehicle Classification, Intrusion Detection, Line-Crossing Detection, Human Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection
Basic EventMotion Detection, Camera Tampering Detection, Exception (Illegal Login)
Linkage MethodTrigger Notification: ONVIF, HTTPS
Region of Interest1 Region
AUDIO
Audio CommunicationN/A
Audio InputN/A
Audio OutputN/A
Audio CompressionN/A
Audio Sampling RateN/A
Environment Noise FilteringYes
Audio Bit RateN/A
ILLUMINATOR
IR LEDQuantity: 1
Range: 30m
Wavelength: 850nm
White LEDN/A
Illuminator On/Off ControlAuto/Scheduled/Always on/Always off
LENS
TypeFixed Focal Lens
Focal Length2.8/4 mm
Aperture2.8 mm: F2.2
4 mm: F2.0
FOV2.8mm:
Horizontal FOV: 88.2°, Vertical FOV: 48.7°, Diagonal FOV: 106.5°

4mm:
Horizontal FOV: 74.6°, Vertical FOV: 41.3°, Diagonal FOV: 88.1°
Lens MountM12
DORI Distance2.8 mm
Detect: 45 m (149 ft)
Observe:19 m (62 ft)
Recognize: 9 m (30 ft)
Identify: 5 m (15 ft)

4 mm
Detect: 60 m (198 ft)
Observe: 25 m (83 ft)
Recognize: 12 m (40 ft)
Identify: 6 m (20 ft)
ANGLE ADJUSTMENT (MANUAL)
RangePan: 0° to 360°
Tilt: 0° to 85°
Rotate: 0° to 360°
VIDEO
Max. Resolution1920 × 1080
Main StreamFrame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolution:
1920x1080, 1280x960, 1280x720

Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Sub-StreamFrame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolution:
704x576, 640x480, 352x288, 320x240

Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Bit Rate ControlCBR, VBR
Video CompressionMain Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264
H.264 TypeMain Profile/High Profile
H.264+Main Stream Supported
H.265 TypeMain Profile
H.265+Main Stream Supported
Video Bit RateMain Stream: 256 Kbps to 4 Mbps
Sub-Stream: 64 Kbps to 512 Kbps
Image SettingsMirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software, Rotation(90°/270°)
Image EnhancementBLC/3D DNR/HLC/SmartIR
Wide Dynamic RangeWDR
SNR≥ 52 dB
Image Parameters SwitchYes
Privacy MaskUp to 4 Masks
ROI1 Region
OSD SettingYes

Warranty:
2 Years
