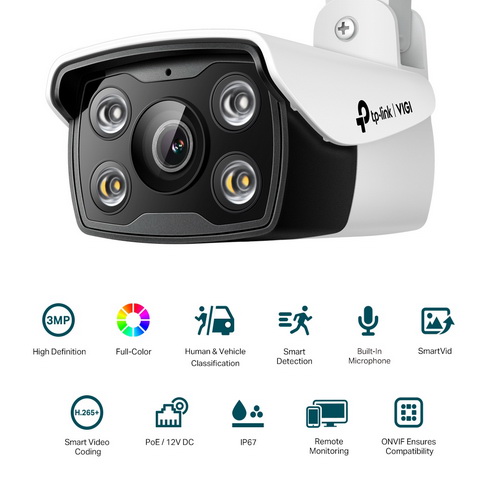

TP-Link VIGI C330 3MP Outdoor Full-Color Bullet Network Camera (Lens: 2.8mm / 4mm) | CCTV Camera (White)

Product Code: CAM-TPL-VIGI-C330

MYR169.00

Color
Size

Brand: TP-Link

  • Share

Get shipping estimates

Country
State
Shipping Method

Highlights:

  • 3MP Super-High Definition: The camera comes with 3MP–more than enough pixels to pick up some of the more discrete details.

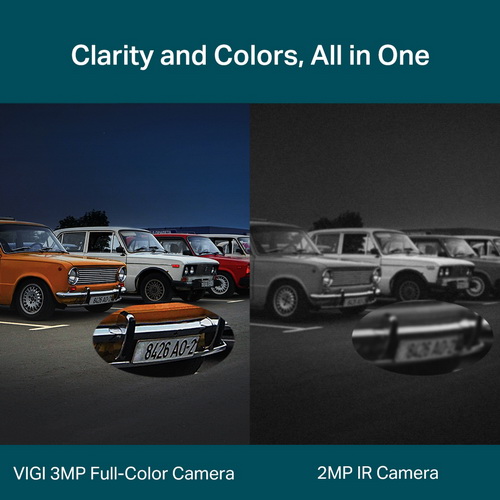

  • 24h Full-Color: Obtain 24-hour color details, even in pitch-black conditions, with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.

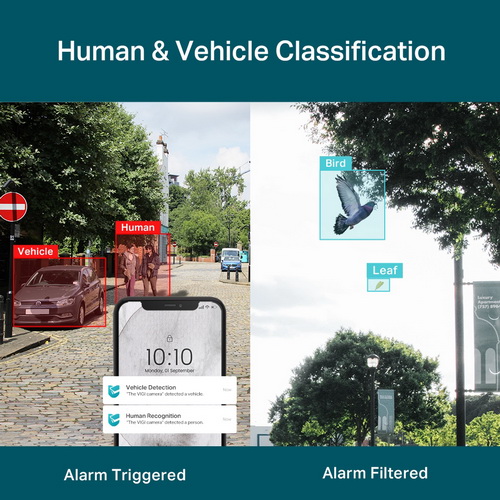

  • Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
  • Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.

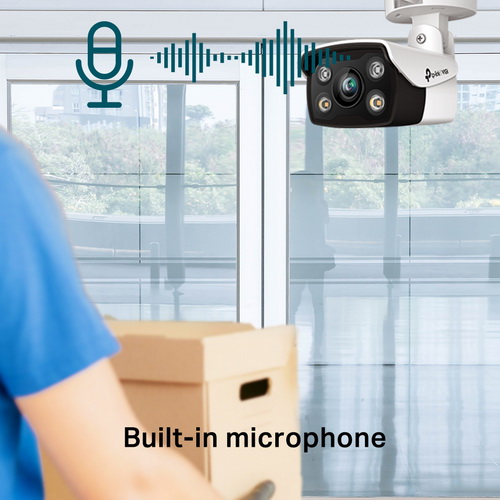

  • Built-In Microphone: Features a built-in microphone to record anything going on within a 15-ft radius of the camera.

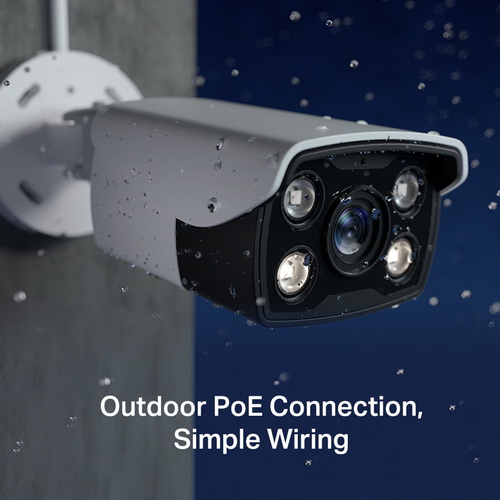

  • IP67 Waterproof: Reliable IP67 for stable outdoor performance.

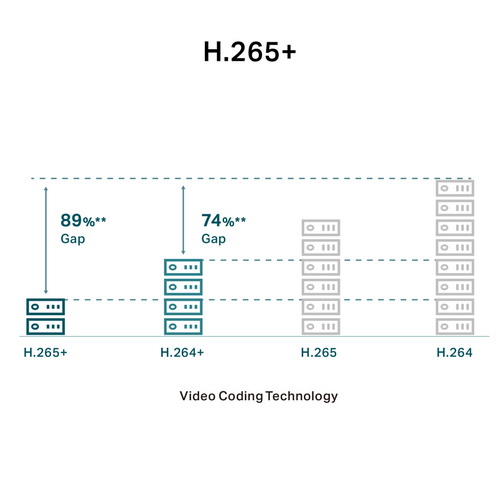

  • H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.

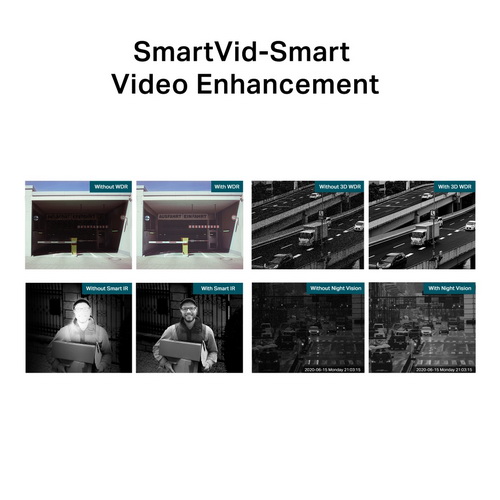

  • Smart Video Enhancement: VIGI's professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.
  • PoE/12V DC: Two types of power supply not only give you more convenience but also make your wiring remarkably easy.
  • Flexible Management: Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manger.

Specifications:

CAMERA
Image Sensor1/2.8” Progressive Scan CMOS
Lens2.8 mm/ 4 mm/ 6 mm
Day/Night SwitchDay/Night/Auto/Schedule-Switch
Digital Noise Reduction3D DNR
WDRDWDR
Weatherproof RatingIP67
IR Working Distance30m
Shutter Speed1/3 to 1/10000 s
Aperture2.8 mm: F1.6
4 mm: F1.6
6 mm: F1.6
Lens MountM12
Viewing Angle2.8mm: 107.5°/57.2°/128.7°(H/V/D)
4mm: 89.1°/45.1°/106.9°(H/V/D)
6mm: 55.1°/30.2°/64°(H/V/D)
Slow ShutterYes
Minimum IlluminationColor: 0.005 Lux; 0 Lux with IR/White Light
Day/Night MechanismIR Cut Filter
NETWORK
ProtocolTCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS,
RTSP, NTP, UPnP UDP, SSL/TLS
ONVIFYes
APIONVIF
Simultaneous Live View3 Main Streams & 3 Sub-Streams
ClientVIGI App, VIGI Security Manager, VIGI NVR, Web
Web BrowserGoogle Chrome® 57 and above
Firefox® 52 and above
Safari® 11 and above
Microsoft® Edge 91 and above
CloudYes
SecurityPassword Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Network StorageNAS (NFS, SMB/ CIFS)
GENERAL
Operating Temperature-30–60 °C
Storage Temperature-40–60 °C
Operating Humidity95% or Less (Non-Condensing)
Storage Humidity95% or Less (Non-Condensing)

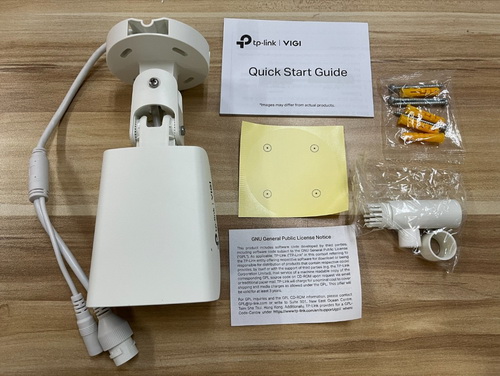

Package ContentsVIGI Network Camera
Quick Start Guide
Waterproof Cable Attachments
Mounting Accessories
Dimensions( H X W X D )174 × 78 × 70 mm
MaterialPlastic
General FeaturesTwo Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening
Net Weight0.26 Kg
Gross Weight0.4 Kg
Power Consumption12V DC: Max 5.4W
PoE: Class 0
Power Supply12V DC ± 5%, 5.5mm Coaxial Power Plug
PoE (802.3af/at, class 0)
ProtectionIP67
Product Dimensions (L x W x H)174 × 78 × 71 mm
CertificationsCE/BSMI/VCCI/ONVIF
INTERFACES
Network Interface1 RJ45 10/100M Self-Adaptive Ethernet Port
AlarmN/A
Reset ButtonN/A
PowerDC Power Port
Button-
Video Output-
On-board Storage-
Built-in MicrophoneYes
Built-in SpeakerN/A
AudioN/A
ALARM AND EVENT MANAGEMENT
Smart EventHuman & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection
Basic EventMotion Detection, Video Tampering Detection, Exception ( Illegal Login)
Alarm LinkageWhite Light Flashing, Message Push
Linkage MethodN/A
Output NotificationMessage Push
VIDEO/IMAGE
Video CompressionMain Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264
Frame Rate & ResolutionsMain Stream:
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 2304x1296, 2048x1280, 1920x1080, 1280x720
Sub-Stream:
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 704x576, 640x480, 352x288, 320x240
Max. Resolution3MP (2304 × 1296)
Video StreamingMain Stream
Sub-Stream
Image SettingsMirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation(90°/270°)
Image EnhancementBLC/3D DNR/HLC/SmartIR
Video Bit Rate64 Kbps to 4 Mbps
Day/Night SwitchDay/Night/Auto/Schedule
SMART FEATURE-SET
Smart EventHuman & Vehicle Classification, Intrusion Detection, Line-Crossing Detection, Human Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection
Basic EventMotion Detection, Camera Tampering Detection, Exception (Illegal Login)
Linkage MethodTrigger Notification: ONVIF, HTTPS
Region of Interest1 Region
AUDIO
Audio CommunicationN/A
Audio InputN/A
Audio OutputN/A
Audio CompressionN/A
Audio Sampling RateN/A
Environment Noise FilteringN/A
Audio Bit RateN/A
ILLUMINATOR
IR LEDQuantity: 2
Range: 30m
Wavelength: 850nm
White LEDN/A
Illuminator On/Off ControlAuto/Scheduled/Always on/Always off
LENS
TypeFixed Focal Lens
Focal Length2.8/4/6 mm
ApertureF1.6
FOV2.8 mm:
Horizontal FOV: 107.5°, Vertical FOV: 57.2°, Diagonal FOV: 128.7°

4 mm:
Horizontal FOV: 89.1°, Vertical FOV: 45.1°, Diagonal FOV: 106.9°

6 mm:
Horizontal FOV: 55.1°, Vertical FOV:30.2°, Diagonal FOV: 64°
Lens MountM12
DORI Distance2.8 mm:
Detect: 52 m (170 ft)
Observe: 22 m (71 ft)
Recognize: 10 m (34 ft)
Identify: 5 m (17 ft)

4 mm:
Detect: 70 m (230 ft)
Observe: 29 m (96 ft)
Recognize: 14 m (46 ft)
Identify: 7 m (23 ft)

6 mm:
Detect: 100 m (327 ft)
Observe: 41 m (136 ft)
Recognize: 20 m (65 ft)
Identify: 10 m (33 ft)
ANGLE ADJUSTMENT (MANUAL)
RangePan: -90° to 90°
Tilt: -90° to 90°
VIDEO
Max. Resolution2304 × 1296
Main StreamFrame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolution:
2304x1296, 2048x1280, 1920x1080, 1280x720

Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Sub-StreamFrame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolution:
704x576, 640x480, 352x288, 320x240

Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Bit Rate ControlCBR, VBR
Video CompressionMain Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264
H.264 TypeMain Profile/High Profile
H.264+Main Stream Supported
H.265 TypeMain Profile
H.265+Main Stream Supported
Video Bit RateMain Stream: 256 Kbps to 4 Mbps
Sub-Stream: 64 Kbps to 512 Kbps
Image SettingsMirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR,
White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software, Rotation(90°/270°)
Image EnhancementBLC/3D DNR/HLC/SmartIR
Wide Dynamic RangeDWDR
SNR≥ 52 dB
Image Parameters SwitchYes
Privacy MaskUp to 4 Masks
ROI1 Region
OSD SettingYes

Warranty:
2 Years
