Standards and Protocols

IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af,
IEEE 802.3x, IEEE 802.1q, IEEE 802.1p, IEEE 802.3at, IEEE 802.3z

Interface

9× 10/100/1000 Mbps RJ45 Ports
1× 1000 Mbps Combo SFP/RJ45 Port
AUTO Negotiation/AUTO MDI/MDIX

Network Media

10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)

Fan Quantity

Fanless

Power Supply

External Power Adapter (Output: 53.5 VDC/2.43 A)

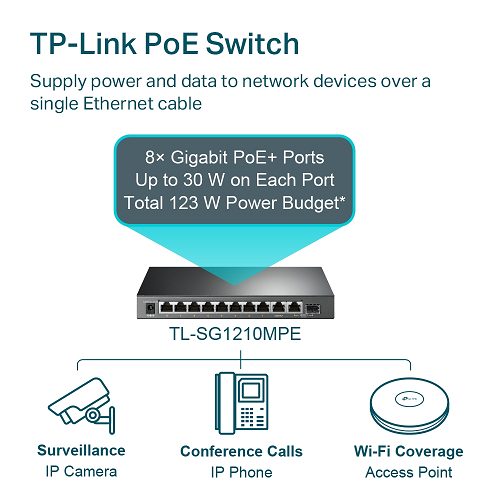

PoE Ports (RJ45)

Standard: 802.3 af/at compliant
PoE Ports: Port 1- Port 8
PoE Power Budget: 123 W

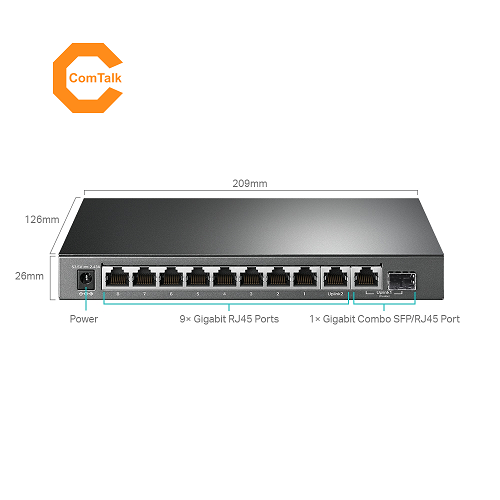

Dimensions ( W x D x H )

8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm)

Max Power Consumption

7.66 W (220V / 50Hz with no PD connected)
141.54 W (220V / 50Hz with 123 W PD connected)

Max Heat Dissipation

26.12 BTU/h (220V / 50Hz with no PD connected)
482.65 BTU/h (220V / 50Hz with 123 W PD connected)

Switching Capacity

20 Gbps

Packet Forwarding Rate

14.88 Mpps

MAC Address Table

4 K

Jumbo Frame

16 KB

Quality of Service

Support Port-Based/802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control

L2 Features

IGMP Snooping V1/V2/V3
Static Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention

VLAN

Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN

PoE

Extend Mode**

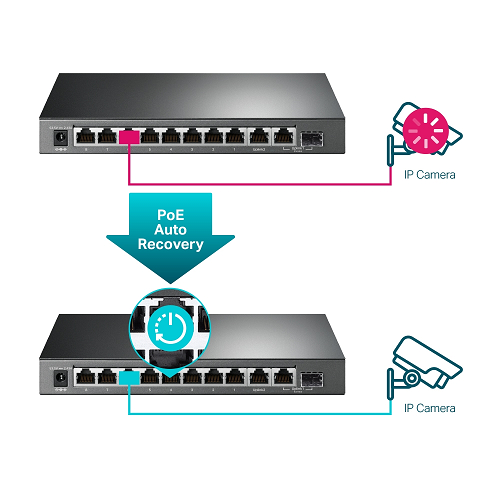

PoE Auto Recovery

Management

Web-based GUI
Easy Smart Configuration Utility

Transmission Method

Store-And-Forward

Certification

FCC, CE, RoHS

Package Contents

TL-SG1210MPE
Power Adapter
Installation Guide
Rubber Feet

System Requirements

Microsoft® Windows® for running Utility

Environment

Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90%RH non-condensing
Storage Humidity: 5%~95%RH non-condensing
