LED

Status

Dimensions ( W x D x H )

57.8 × 18 × 173.4 mm (2.28 × 0.71 × 6.83 in)

Antenna

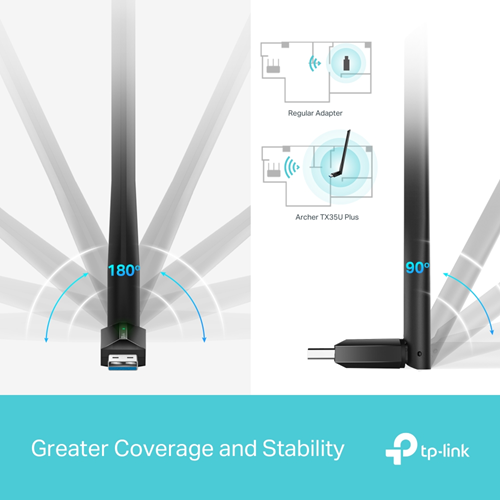

2× High-Gain Dual-Band Antennas

Wireless Standards

IEEE 802.11a/b/g/n/ac/ax

Signal Rate

5 GHz:
11ax: Up to 1201 Mbps(dynamic)
11ac: Up to 867 Mbps(dynamic)
11n: Up to 300 Mbps(dynamic)
11a: Up to 54 Mbps(dynamic)
2.4 GHz:
11ax: Up to 574 Mbps(dynamic)
11n: Up to 300 Mbps(dynamic)
11g: Up to 54 Mbps(dynamic)
11b: Up to 11 Mbps(dynamic)

Reception Sensitivity

5 GHz:
11ax HE80 MCS0: -88 dBm
11ax HE80 MCS11: -60 dBm
11a 54Mbps: -75 dBm
11ac VHT80 MCS0: -87 dBm
11ac VHT80 MCS9: -62 dBm
2.4 GHz:
11ax HE40 MCS0: -92 dBm
11ax HE40 MCS11: -63 dBm
11g 54Mbps: -79 dBm
11n HT40 MCS9: -68 dBm

Wireless Modes

Client Mode
Hotspot Mode

Wireless Security

WEP, WPA/WPA2/WPA3, WPA-PSK/WPA2-PSK

Transmission Power

5 GHz: 19dBm(FCC)/17dBm(CE)(EIRP)
2.4 GHz: 18dBm(FCC)/18dBm(CE)(EIRP)

Certification

FCC, CE, RoHS

Package Content

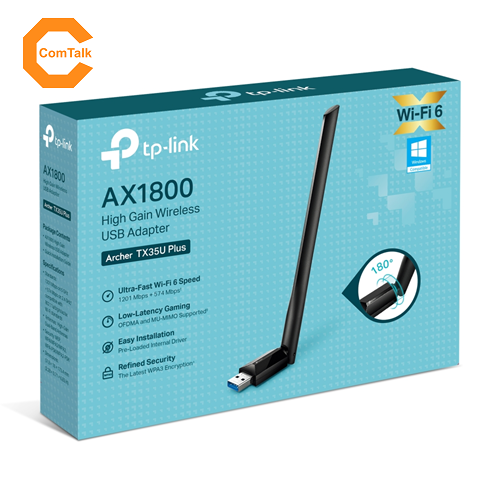

AX1800 High Gain Wireless USB Adapter
Archer TX35U Plus
Quick Installation Guide

System Requirements

Supported operating systems include Windows 10, 11

Environment

Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
