LED

Status

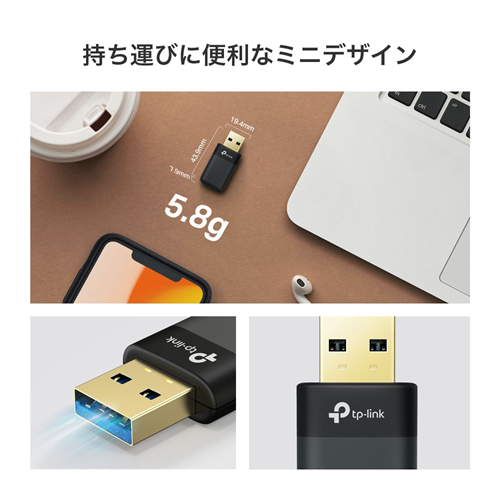

Dimensions ( W x D x H )

19.4 × 7.9 × 43.9 mm (0.76 × 0.3 × 1.73 in)

Antenna

2× Dual-Band Antennas

Wireless Standards

IEEE 802.11a/b/g/n/ac/ax

Signal Rate

5 GHz:
11ax: Up to 1201 Mbps(dynamic)
11ac: Up to 867 Mbps(dynamic)
11n: Up to 300 Mbps(dynamic)
11a: Up to 54 Mbps(dynamic)
2.4 GHz:
11ax: Up to 574 Mbps(dynamic)
11n: Up to 400 Mbps(dynamic)
11g: Up to 54 Mbps(dynamic)
11b: Up to 11 Mbps(dynamic)

Reception Sensitivity

5 GHz:
11ax HE80 MCS0: -90 dBm
11ax HE80 MCS11: -59 dBm
11a 54Mbps: -77 dBm
11ac VHT80 MCS0: -92 dBm
11ac VHT80 MCS9: -64 dBm
2.4 GHz:
11ax HE40 MCS0: -92 dBm
11ax HE40 MCS11: -63 dBm
11g 54Mbps: -89 dBm
11n HT40 MCS9: -74 dBm

Wireless Modes

Infrastructure mode

Wireless Security

WEP, WPA/WPA2/WPA3 (Personal/Enterprise), WPA-PSK/WPA2-PSK

Transmission Power

5 GHz: 19dBm(FCC) /21.5dBm(CE) (EIRP)
2.4 GHz : 19dBm(FCC) / 18.5dBm(CE) (EIRP)

Certification

FCC, CE, RoHS

Package Content

AX1800 Mini Wi-Fi 6 Wireless USB Adapter

System Requirements

Supported operating systems include Windows 10, 11

Environment

Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
