Model

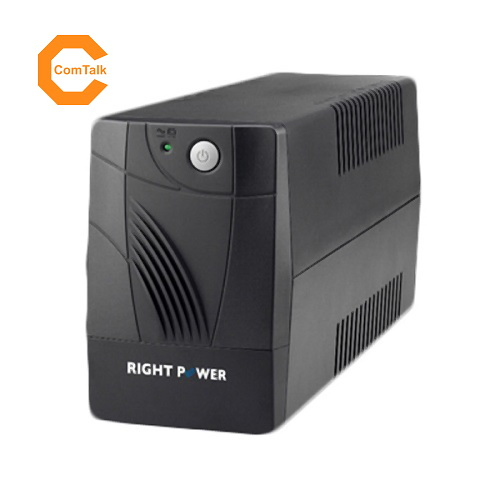

PowerStar NEO 800

CAPACITY (VA)

800VA

INPUT

INPUT VOLTAGE

220V/230V/240V

VOLTAGE RANGE

162 - 290VAC

FREQUENCY RANGE

50Hz or 60Hz (Auto-sensing)

OUTPUT

OUTPUT VOLTAGE

220V/230V/240V

OUTPUT FREQUENCY

50Hz or 60Hz +/-1%

WAVEFORM

Simulated Sinewave

TRANSFER TIME (Typical)

2ms - 6ms

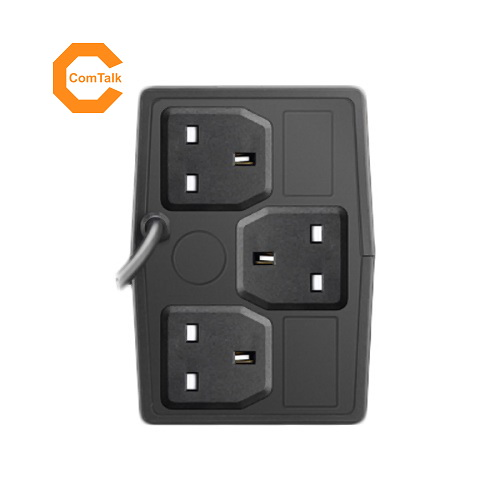

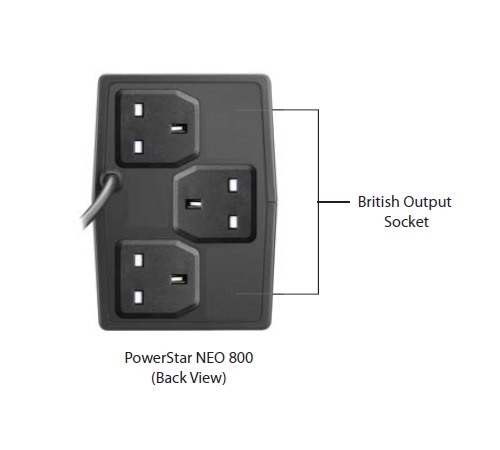

OUTPUT SOCKET

3 x British Socket c/w Safety Window

BATTERY

SEALED LEAD ACID MAINTENANCE FREE BATTERY

12V 7Ah x 1

BACK UP TIME (Depending on Load)

20 to 30 Minutes

RECHARGE TIME

4 Hours to 90% After Complete Discharge

STATUS INDICATOR

L.E.D INDICATOR

AC Mode, Battery Mode

AUDIBLE ALARM

On Battery, Low Battery, Overload, Fault

SURGE PROTECTION & FILTERING

SPIKE, SURGE & LIGHTNING PROTECTION

Yes

OVERLOAD, SHORT CIRCUIT PROTECTION

Yes

PHYSICAL

OPERATING ENVIRONMENT

0-40℃, 0-90% Relative Humidity (Non-Condensing)

NOISE LEVEL

Less than 40dB

DIMENSION (D x W x H)mm

279 x 101 x 142

WEIGHT (KG)

4.2

WARRANTY

UPS WARRANTY

3 Years Full Warranty Include Parts & Labour

2 Years Warranty for Battery
