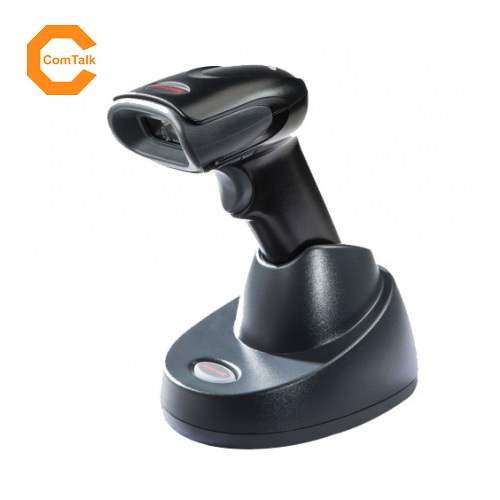

Honeywell Voyager XP 1472g 1D Wireless Barcode Scanner

Product Code: BCS-HNW-XP1472G1D

MYR1289.00

Color

Brand: Honeywell

  • Share

Get shipping estimates

Country
State
Shipping Method

We designed the Voyager™ Extreme Performance (XP) 1470 series scanner for in-store retail workflows that require a highly accurate 1D/2D scanning solution in a durable form factor. Trust it for industry-leading scanning capability on traditional barcodes and digital screens – even on damaged and difficult-to-read codes. Backed by a 5-year warranty for corded models, and a 3-year warranty for cordless.



Features:

Fast, Accurate Scanning
Highly accurate, fast scans of even damaged and poor-quality barcodes. An extended depth of field scans to the bottom of the cart, saving time and back bending.

A Good Read Every Time
Enhanced performance on the barcodes stores scan every day: merchandise price tags, plus digital coupons, codes, and wallets on customers’ smartphones.

Best-in-Class Durability
Engineered to 30 drops at 1.8 m (6 ft) and 1,000 tumbles at 0.5 m (1.6 ft), Voyager XP scanners are built to withstand busy point-of sale scanning, reducing the risk of errors and operational slowdowns and avoiding the hidden cost of warranty.

Integrated Analytics
Honeywell Operational Intelligence software delivers on-demand scan insights, enabling higher employee productivity and throughput.

Easy Software Updates
The Honeywell Scanner Management Utility (SMU) creates a holistic solution that automates how you deploy and update the scanners in your environment.

Long Bluetooth Range
A longer Bluetooth® range compared to competitive devices enables greater operational flexibility for line busting or peak season satellite POS stations (applies to Voyager XP 1472g cordless scanner).



Specifications:

MECHANICAL

Dimensions (LxWxH)
1472g Scanner: 62 mm x 173 mm x 82 mm (2.5 in x 6.8 in x 3.2 in)
1472g Base: 132 mm x 102 mm x 81 mm (5.2 in x 4.0 in x 3.2 in)

Weight
1472g Scanner: 210 g (7.4 oz)
1472g Base: 179 g (6.3 oz)



ELECTRICAL

Input Voltage
4.0V DC to 5.5V DC

Standby Power
1472g Charger/Communication Base: 0.5 W (0.1A @ 5V)

Host System Interfaces
1472g: USB, Keyboard Wedge, RS-232, RS485 support for IBM 46xx (RS485)



WIRELESS (1472g only)

Radio/Range
2.4 GHz to 2.5 GHz (ISM Band)
Adaptive Frequency Hopping Bluetooth v4.2
30 m (98 ft) line of sight with Honeywell charger/communication base

Power Options
Battery: 2400 mAh Li-ion minimum
Number of Scans: Up to 50,000 scans per charge
Expected Duration of Operation: 14 hours
Expected Charge Time: 4.5 hours

User Indicators
Good Decode LEDs, Rear View LEDs, Beeper (adjustable tone and volume), Vibration adjustable), Charge Status Indicator



ENVIRONMENTAL

Operating Temperature
1472g Scanner:
Charging: 5°C to 40°C (41°F to 104°F)
Non-Charging: 0°C to 50°C (23°F to 122°F)
1472g Charger/Communication Base:
Charging: 5°C to 40°C (41°F to 104°F)
Non-Charging: 0°C to 50°C (32°F to 122°F)

Storage Temperature
1472g Scanner:
For storage up to 90 days: -20°C to 35°C (-4°F to 95°F)
For storage up to 1 year: -20°C to 20°C (-4°F to 68°F)
1472g Charger/Communication Base:
-40°C to 70°C (-40°F to 158°F)

Electrostatic Discharge (ESD) (Scanners and Cradles)
±8 kV indirect coupling plane, ±15 kV direct air

Humidity
Up to 95% relative humidity, non-condensing

Drop
Designed to withstand 30 1.8 m(6 ft) drops to concrete

Tumble
Designed to withstand 1,000 tumbles from 0.5 m (1.64 ft)

Environmental Sealing
1472g: IP42

Light Levels
0 to 100,000 lux (9,290 foot-candles)



SCAN PERFORMANCE

Scan Pattern
Area Image (1040 x 720 pixel array)

Motion Tolerance
70 cm/s (27.6 in/s) for 13 mil UPC at optimal focus

Scan Angle
Horizontal: 39.2° nominal
Vertical: 27.4° nominal

Roll, Pitch, Skew
±180°, ±65°, ±70°

Barcode Types
Reads standard 1D, PDF, 2D, and DotCode symbologies

Note
Decode capabilities dependent on configuration.



DECODE RANGES

TYPICAL PERFORMANCE*STANDARD RANGE (SR)
5 mil Code 3920 mm – 205 mm (0.8 in – 8.1 in)
13 mil UPC18 mm – 400 mm (0.7 in – 15.8 in)
6.7 mil PDF41715 mm – 185 mm (0.6 in – 7.3 in)
10 mil DM**10 mm – 165 mm (0.4 in – 6.5 in)
20 mil QR5 mm – 325 mm (0.2 in – 12.8 in)

* Performance may be impacted by barcode quality and environmental conditions.

** Data Matrix (DM)



Part Number: 1472G1D-2USB-5-A



Warranty:
3 Years
