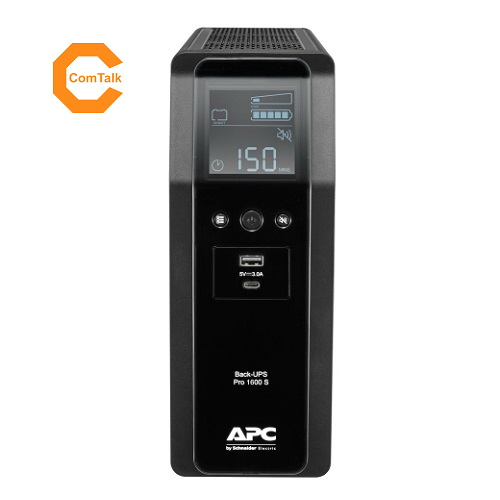

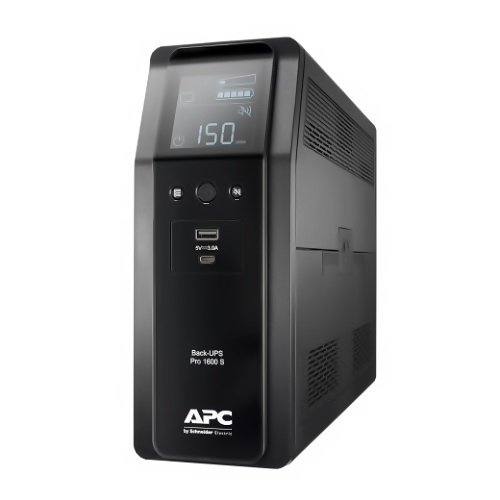

APC Back UPS Pro BR 1600VA BR1600SI

Product Code: UPS-APC-BR1600SI

MYR2819.00

Color

Brand: APC

  • Share

High Performance Computer and Electronics UPS for Premium Power Protection.



Highlights:

  • UPS 1600VA (960W)

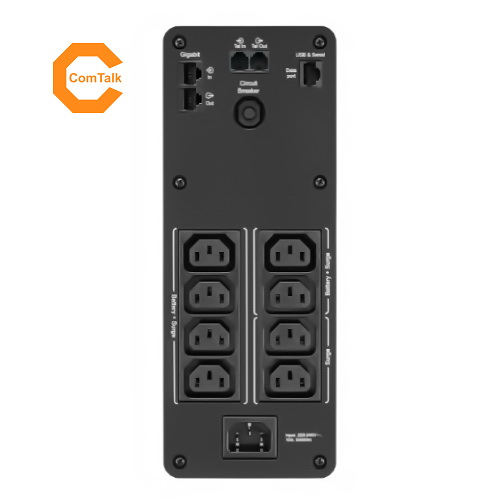

  • 8 IEC 320 C13 Outlet
  • Sine Wave Output
  • LCD Graphics Display
  • Dataline Surge Protection
  • Boost and Trim Automatic Voltage Regulation (AVR)



Specifications:

Output

Max Configurable Power (Watts)

  • 960Watts / 1.6kVA

Output Frequency (sync to mains)

  • 50/60 Hz +/-1 Hz

Topology

  • Line Interactive



Input

Input frequency

  • 50/60 Hz +/- 3 Hz (auto sensing)

Input voltage range for main operations

  • 176 - 294V



Batteries & Runtime

Battery type

  • Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof

Typical recharge time

  • 16hour(s)

Expected Battery Life (years)

  • 3 - 5

RBC Quantity

  • 1

Battery Volt-Amp-Hour Capacity

  • 260

Runtime



Communications & Management

Interface Port(s)

  • USB

Control panel

  • Multi-function LCD status and control console

Audible Alarm

  • Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm



Surge Protection and Filtering

Surge energy rating

  • 509Joules

Data Line Protection

  • RJ45 10/100/1000 Base-T Ethernet protection

Filtering

  • Full time multi-pole noise filtering :10% of IEEE surge let-through : zero clamping response time: instantaneous



Physical

Maximum Height

  • 260MM, 26.0CM

Maximum Width

  • 100MM, 10.0CM

Maximum Depth

  • 368MM, 36.8CM

Net Weight

  • 12.1KG

Shipping weight

  • 13.75KG

Shipping Height

  • 359MM, 35.9CM

Shipping Width

  • 223MM, 22.3CM

Shipping Depth

  • 482MM, 48.2CM

Color

  • Black



Environmental

Operating Temperature

  • 0 - 40 °C

Operating Relative Humidity

  • 0 - 95 (non-condensing) %

Operating Elevation

  • 0-3000meters

Storage Temperature

  • -15 - 45 °C

Storage Relative Humidity

  • 0 - 95 (non-condensing) %

Storage Elevation

  • 0-15000meters

Audible noise at 1 meter from surface of unit

  • 45.0dBA

Online thermal dissipation

  • 19.5BTU/hr



Conformance

Approvals

  • A-tick, C-tick, CE, EAC, GS Mark, RCM, TISI

Equipment protection policy

  • Lifetime : 200000 AUD, Lifetime : 150000 Euros, Lifetime : 75000 GBP



Note: This item only can be shipped to West Malaysia. Kindly contact seller to ask for shipping fee to East Malaysia. Oversea country shipping not available.



Warranty:

2 years repair or replace
