Dintek Cat.6 Shielded RJ45 Modular Plug
Product Code: ACC-DT-CAT6-1501-88032
MYR460.00
Color
Size
Brand: Dintek
Get shipping estimates
| Country | ||
| State | ||
| Shipping Method | ||
|
|
||

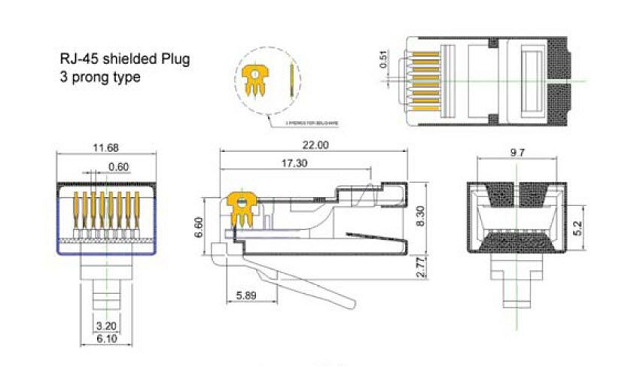

The PowerMAXTM RJ45 2 piece plug for shielded solid wire 23-24AWG (3 prong) includes a conductor load bar to keep the integrity of the twisted pairs and aid in loading into plug. It is suitable for Cat.6 cable sizes.
Electrical Characteristics
- Dielectric with standing voltage: 1000VAC (RMS)
- Contact resistance: 10 milliohms max
- Current rating: 30 VAC at 1.5 AMPS
- Insulation resistance: 500 megaohms min
Mechanical Characteristics
- Cable-to-plug tensile round and flat cable available
- Strength: 20 lbs. min.
- Durability: 750 cycles min.
- Operating temperature: -20°C to +75°C
Material and Finish
- Housing: Poly-carbonate
- Contact material: Phosphor bronze alloy
- Contact: Copper alloy 50u” gold over nickel
Applications
- 10 Base-T (IEEE 802.3)
- Fast Ethernet (IEEE 802.3u)
- 100Vg-AnyLAN (IEEE 802-12)
- Token Ring (IEEE 802.5)
- TP-PMD (ANSI X 3T9.5)
- 100 Mbps CDDI
- Gigabit 1000 Mbps (802.3z)
Standards Conformance
- ANSI/TIA-568-2.D
- ISO/IEC 11801
- EN 50173
