Highlights:

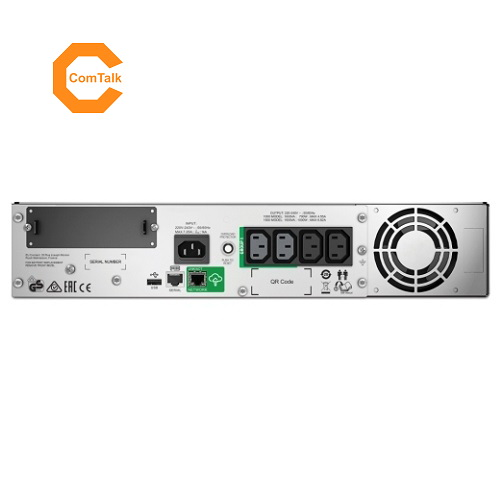

• UPS 1000VA (700W) Rack Mount
• 4 IEC 320 C13 Outlet
• Intuitive LCD interface
• Battery failure notification
• Boost and Trim Automatic Voltage Regulation (AVR)

Specifications:

Output

Max Configurable Power (Watts)

• 700Watts / 1.0kVA

Output Voltage Note

• Configurable for 220 : 230 or 240 nominal output voltage

Output Voltage Distortion

• Less than 5%

Output Frequency (sync to mains)

• 50/60Hz +/- 3 Hz

Other Output Voltages

• 220, 240

Topology

• Line Interactive

Waveform type

• Sine wave

Transfer Time

• 6ms typical : 10ms maximum

Input

Input frequency

• 50/60 Hz +/- 3 Hz (auto sensing)

Input voltage range for main operations

• 160 - 286V

Input voltage adjustable range for mains operation

• 151 - 302V

Number of Power Cords

• 1

Other Input Voltages

• 220, 240

Batteries & Runtime

Battery type

• Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof

Typical recharge time

• 3hour(s)

Expected Battery Life (years)

• 4 - 6

RBC Quantity

• 1

Battery Charge Power (Watts)

• 112Watts

Battery Volt-Amp-Hour Capacity

• 336

Runtime

• View Runtime Graph
• View Runtime Chart

Communications & Management

Interface Port(s)

• RJ-45 Serial, SmartSlot, USB

Control panel

• Multi-function LCD status and control console

Audible Alarm

• Alarm when on battery : distinctive low battery alarm : configurable delays

Emergency Power Off (EPO)

• Optional

Available SmartSlot™ Interface Quantity

• 1

Surge Protection and Filtering

Surge energy rating

• 459Joules

Filtering

• Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical

Maximum Height

• 86MM, 8.6CM

Maximum Width

• 432MM, 43.2CM

Maximum Depth

• 477MM, 47.7CM

Net Weight

• 22.5KG

Shipping weight

• 31.45KG

Shipping Height

• 251MM, 25.1CM

Shipping Width

• 594MM, 59.4CM

Shipping Depth

• 603MM, 60.3CM

Color

• Black

Environmental

Operating Temperature

• 0 - 40 °C

Operating Relative Humidity

• 0 - 95 %

Operating Elevation

• 0-3000meters

Storage Temperature

• -15 - 45 °C

Storage Relative Humidity

• 0 - 95 %

Storage Elevation

• 0-15000meters

Audible noise at 1 meter from surface of unit

• 45.0dBA

Online thermal dissipation

• 56.0BTU/hr

Conformance

Approvals

• CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, UL 1778, VDE

Note: This item only can be shipped to West Malaysia. Kindly contact seller to ask for shipping fee to East Malaysia. Oversea country shipping not available.

Warranty:

3 years repair or replace (excluding battery) and 2 year for battery
