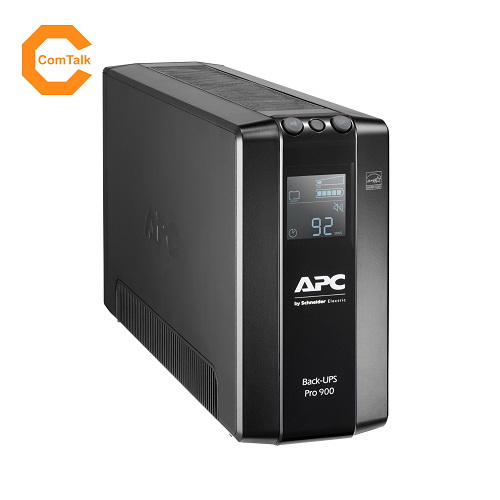

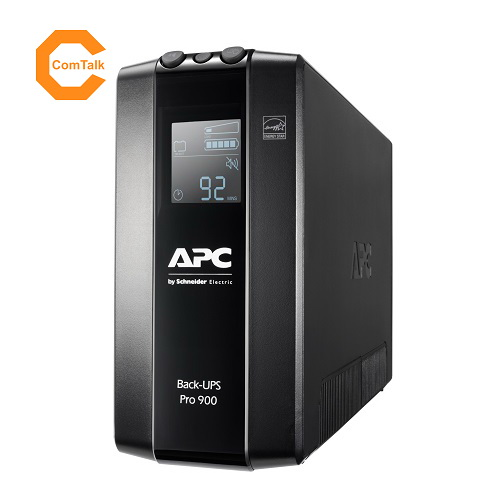

APC Back-UPS Pro provide battery backup and surge protection ideal for your home, home office or small business.
The new Back-UPS Pro models are equipped with premium features including increased runtime and power capability for your critical electronics.

Highlights:

• UPS 900VA (540W)
• AVR with Boost and Trim

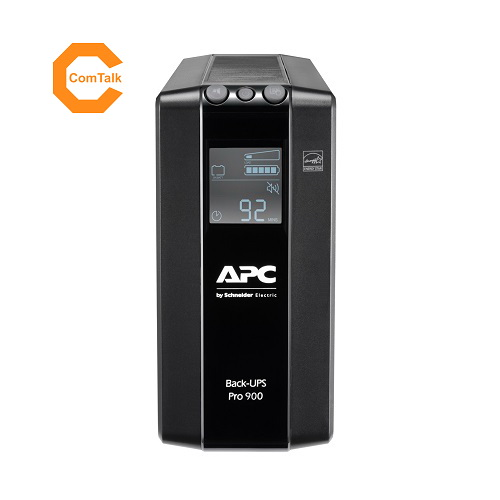

• LCD Interface

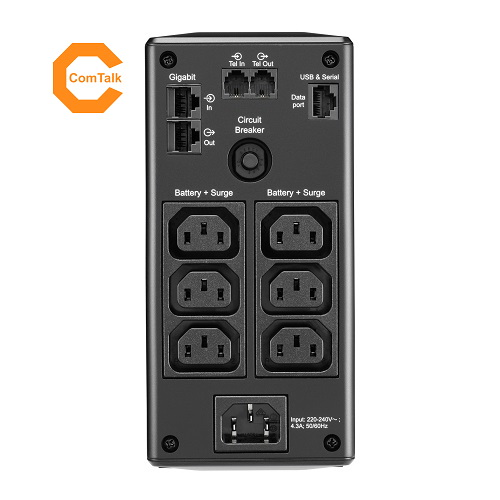

• 6 IEC-320 C13 Outlet

Specifications:

Output

Max Configurable Power (Watts)

540Watts / 900VA

Output Frequency (sync to mains)

50/60 Hz +/-1 Hz

Topology

Line Interactive

Waveform type

Stepped approximation to a sinewave

Transfer Time

10ms typical : 12ms maximum

Input

Input frequency

50/60 Hz +/- 3 Hz (auto sensing)

Input voltage range for main operations

176 - 294V

Batteries & Runtime

Battery type

Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof

Typical recharge time

12hour(s)

Expected Battery Life (years)

3 - 5

RBC Quantity

1

Battery Volt-Amp-Hour Capacity

128

Runtime

View Runtime Graph

View Runtime Chart

Communications & Management

Interface Port(s)

USB

Control panel

Multi-function LCD status and control console

Audible Alarm

Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Surge Protection and Filtering

Data Line Protection

Network line - 10/100/1000 Base-T Ethernet (RJ-45 connector)

Filtering

Full time multi-pole noise filtering :10% of IEEE surge let-through : zero clamping response time: instantaneous

Physical

Maximum Height

190MM, 19.0CM

Maximum Width

91MM, 9.1CM

Maximum Depth

310MM, 31.0CM

Net Weight

7.0KG

Shipping weight

8.0KG

Shipping Height

255MM, 25.5CM

Shipping Width

440MM, 44.0CM

Shipping Depth

143MM, 14.3CM

Environmental

Operating Temperature

0 - 40 °C

Operating Relative Humidity

0 - 95 %

Operating Elevation

0-3000meters

Storage Temperature

-15 - 45 °C

Storage Relative Humidity

0 - 95 %

Storage Elevation

0-15000meters

Audible noise at 1 meter from surface of unit

45.0dBA

Online thermal dissipation

16.4BTU/hr

Conformance

Approvals

A-tick, C-tick, CE, EAC, GS Mark, RCM, TISI

Equipment protection policy

Lifetime : 200000 AUD, Lifetime : 150000 Euros, Lifetime : 75000 GBP

Note: This item only can be shipped to West Malaysia. Kindly contact seller to ask for shipping fee to East Malaysia. Oversea country shipping not available.

Warranty:

2 years repair or replace
