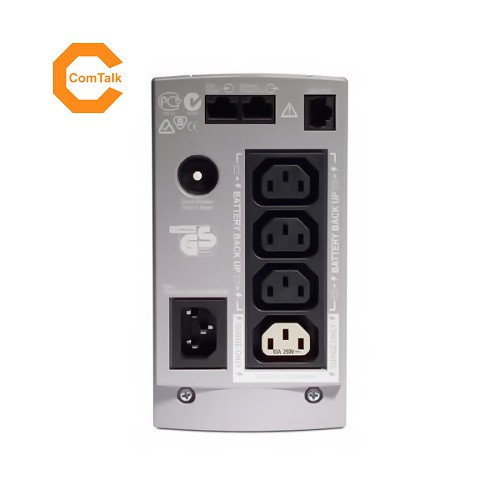

Battery Backup & Surge Protector for Electronics and Computers.
Highlights:
- UPS 350VA (210W)
- 4 IEC 320 C13 Outlet
- Intelligent Battery Management
- LED Status Display
Specifications:
Output
Max Configurable Power (Watts)
210Watts / 350VA
Output Frequency (sync to mains)
47 - 63 Hz
Output Frequency (not synced)
50/60 Hz +/-1 Hz
Topology
Standby
Transfer Time
6ms typical : 10ms maximum
Input
Input frequency
50/60 Hz +/- 3 Hz (auto sensing)
Input voltage range for main operations
180 - 266V
Number of Power Cords
2
Batteries & Runtime
Battery type
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time
6hour(s)
Replacement Battery
RBC2
Expected Battery Life (years)
4 - 6
RBC Quantity
1
Battery Volt-Amp-Hour Capacity
84
Runtime
View Runtime Graph
View Runtime Chart
Efficiency
View Efficiency Graph
Communications & Management
Interface Port(s)
Optional Simple Signalling RS232 cable, USB
Control panel
LED status display with On Line : On Battery : Replace Battery and Overload indicators
Audible Alarm
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Surge Protection and Filtering
Surge energy rating
310Joules
Data Line Protection
Analog phone line for phone/fax/modem/DSL (RJ-45 connector)
Filtering
Full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : meets UL 1449
Physical
Maximum Height
165MM, 16.5CM
Maximum Width
91MM, 9.1CM
Maximum Depth
284MM, 28.4CM
Net Weight
6.32KG
Shipping weight
7.05KG
Shipping Height
178MM, 17.8CM
Shipping Width
241MM, 24.1CM
Shipping Depth
368MM, 36.8CM
Color
Beige
Environmental
Operating Temperature
0 - 40 °C
Operating Relative Humidity
0 - 95 %
Operating Elevation
0-3000meters
Storage Temperature
-15 - 45 °C
Storage Relative Humidity
0 - 95 %
Storage Elevation
0-15000meters
Online thermal dissipation
19.0BTU/hr
Conformance
Approvals
C-tick, CE, EN 50091-1, EN 50091-2, GOST, VDE
Equipment protection policy
Lifetime : 100000 Euro, Lifetime : 50000 GBP
Note: This item only can be shipped to West Malaysia. Kindly contact seller to ask for shipping fee to East Malaysia. Oversea country shipping not available.
Warranty:
2 years repair or replace
