Highlights:
- Unparalleled Tri-Band Speed — Boost your overall speeds up to 2402 Mbps (6 GHz) + 2402 Mbps (5 GHz) + 574 Mbps (2.4 GHz)
- WiFi 6E Standard — Expand to the clearer, broader 6 GHz band for more bandwidth and faster speeds. Currently, the 6 GHz Band is only supported on Windows 11.
- Reliable Connections — The latest Intel® Wi-Fi 6E chipset’s reduced latency and improved reliability unlock your Wi-Fi 6E router’s full potential
- Wider Signal Coverage — Two multi-directional antennas with a magnetized base are designed for optimal signal reception
- Bluetooth 5.3 — Security and reliability improvement to last-gen high-speed Bluetooth 5.2
- Improved Security — The latest security enhancement, WPA3, provides enhanced protection in personal password safety
- Reliably Engineered — The specialised heatsink and gold plating improve stability and performance even at high CPU temps
- Backward Compatibility — Full support for 802.11ax/ac/a/b/g/n standards
Features:

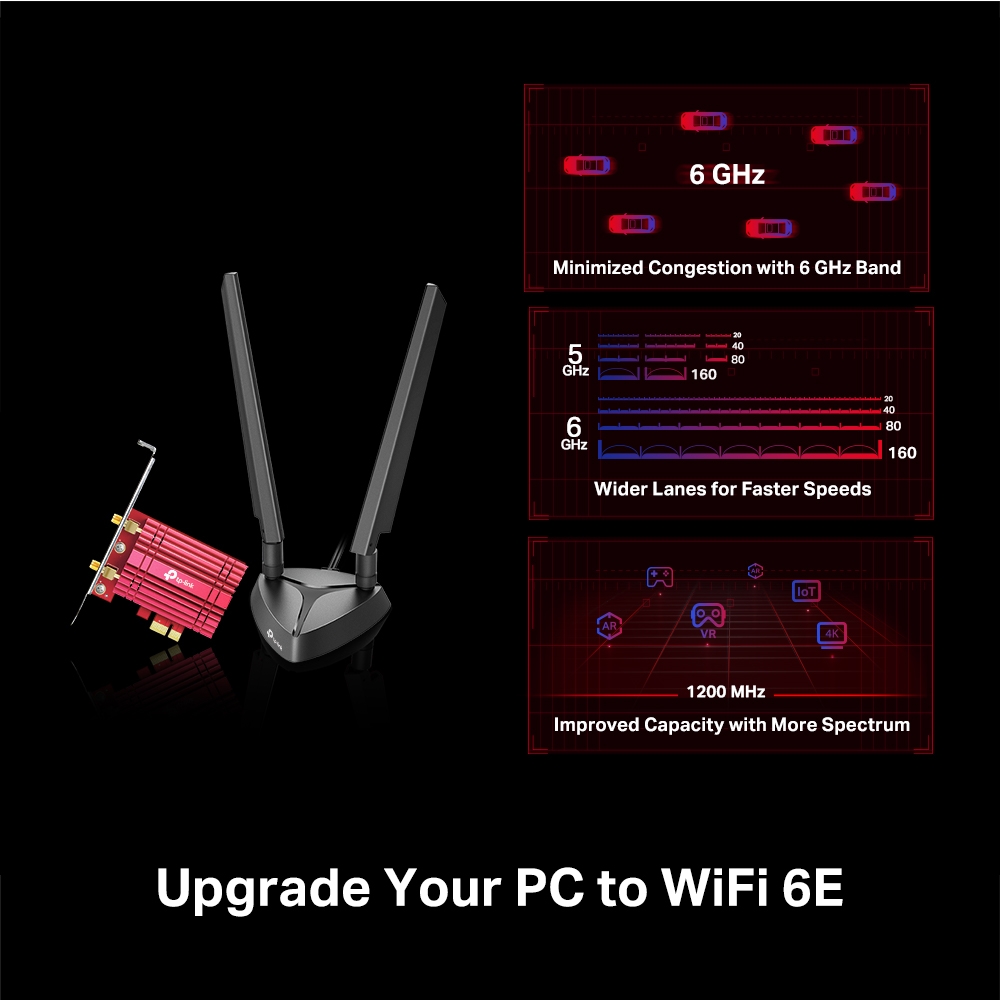

Upgrade Your Wi-Fi to 6E
Wi-Fi 6E means Wi-Fi 6 extended to the 6 GHz band, a newly-opened frequency band that adds more bandwidth, faster speeds, and lower
latency. This opens up resources for future innovations in AR/VR, 8K streaming, and more.
Super Highway for Unimpeded Streaming
Archer TXE75E arms your PC with the newly opened 6 GHz band, unlocking your Wi-Fi 6E router’s full potential. Enjoy unimpeded streaming on the 6 GHz band—exclusive to Wi-Fi 6E devices. This prevents drops in speed and interference from legacy devices.

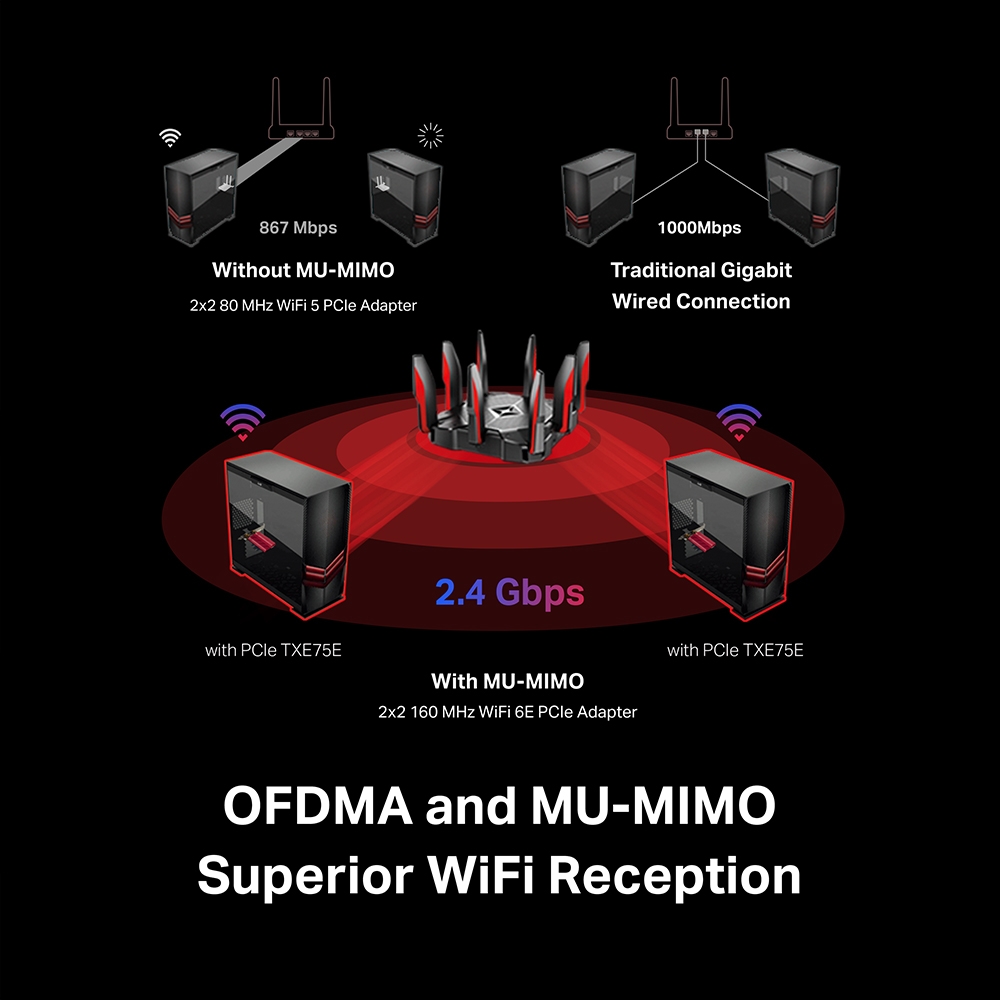

Superior Wi-Fi Reception
Archer TXE75E brings your PC’s Wi-Fi reception to the next level with the revolutionary combination of OFDMA and MU-MIMO. This ensures the efficiency of your PC’s Wi-Fi connection by allowing more devices to communicate with your router simultaneously, rather than waiting in turn for data.
Ultra-Responsive Gaming with Lower Latency
Lower latency is key to seamless experiences in real-time applications like video conferencing and gaming. To achieve this, Archer TXE75E reduces lag by up to 75% with the Intel® Wi-Fi 6E chipset.
Stronger Connection with Flexible Antenna Placement
Two multi-directional and high-performance antennas with a magnetized base extend your existing Wi-Fi reception capabilities, allowing you to stream throughout your home. Place the antenna base anywhere on your desktop to find the optimal location for signal reception.
More Robust Bluetooth 5.3
Inheriting the high speed and broad coverage of last-gen Bluetooth, the latest Bluetooth 5.3 has also been enhanced in terms of reliability and security, which ensures more robust coordination with your game controllers, headphones, keyboards etc.
Refined Security
The latest Wi-Fi security protocol, WPA3, brings new capabilities to improve cybersecurity. More secure encryption in Wi-Fi password safety and enhanced protection against brute-force attacks combine to safeguard your home network.
Specifications:
HARDWARE FEATURES |
---|
Dimensions | 3.7 × 4.8 × 0.8 in (95.2 ×120.8 ×21.5 mm) |
---|
Antenna Type | 2× High-Gain Tri-Band Antennas |
---|
WIRELESS FEATURES |
---|
Wireless Standards | IEEE 802.11a/b/g/n/ac/ax |
---|
WLAN Signal Rate | 6 GHz: 11ax: Up tp 2402Mbps 5 GHz: 11ax: Up to 2402 Mbps(dynamic) 11ac: Up to 1732 Mbps(dynamic) 11n: Up to 300 Mbps(dynamic) 11a: Up to 54 Mbps(dynamic) 2.4 GHz: 11ax: Up to 574 Mbps(dynamic) 11n: Up to 400 Mbps(dynamic) 11g: Up to 54 Mbps(dynamic) 11b: Up to 11 Mbps(dynamic) |
---|
WLAN Reception Sensitivity | 6 GHz: 11ax HE160 MCS0:-86 11ax HE160 MCS11:-56 5 GHz: 11ax HE80 MCS0: -90 dBm 11ax HE80 MCS11: -59 dBm 11a 54Mbps: -77 dBm 11ac VHT80 MCS0: -92dBm 11ac VHT80 MCS9: -64dBm 2.4 GHz: 11ax HE40 MCS0: -91 dBm 11ax HE40 MCS11: -60 dBm 11g 54Mbps: -76 dBm 11n HT40 MCS7: -72dBm |
---|
WLAN Transmit Power | 5 GHz: 20dBm(FCC) /15dBm(CE) (EIRP) 2.4 GHz: 20dBm(FCC) / 16dBm(CE) (EIRP) 6 GHz: 12dBm(FCC) |
---|
WLAN Modes | Infrastructure mode |
---|
Wireless Security | WEP, WPA/WPA2/WPA3, WPA-PSK/WPA2-PSK |
---|
OTHERS |
---|
Certification | FCC, CE, RoHS |
---|

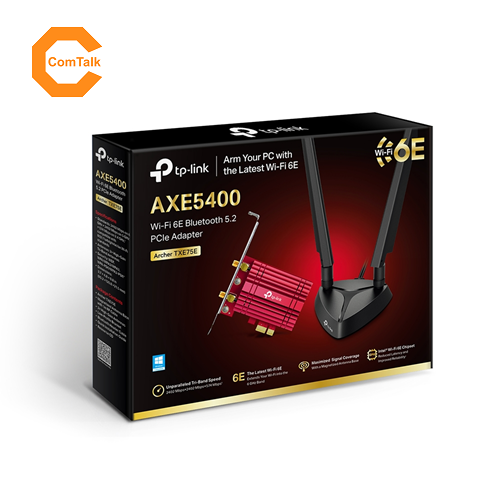

Package Contents | Archer TXE75E Magnetized Antenna Base with 1m RF Cable 2× High-Gain Antennas Low-Profile Bracket Bluetooth Header Cable Quick Installation Guide Resource CD |
---|
System Requirements | Supported operating systems include Windows 10, 11(64-bit). Currently 6 GHz Band only supported on Windows 11. |
---|
Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
---|
Accessories Specifications | Extension Cable Length: 1 m Bluetooth Header Cable Length: 0.3 m |
---|
Warranty:
3 Years
