TP-Link Archer C24 AC750 Dual-Band WiFi Router

Product Code: WRT-TPL-AC24

MYR109.00

Color

Brand: TP-Link

  • Share

Get shipping estimates

Country
State
Shipping Method

Highlights:

  • High-Speed Wi-Fi—AC750 dual-band is ideal for HD video streaming, high-speed downloading.
  • Far-Reaching Coverage—4× antennas deliver far-reaching Wi-Fi and reliable connections.
  • Multi-Mode 3 in 1—Supports Router, Access Point, and Range Extender to add flexibilities.
  • Parental Controls—Manages when and how connected devices can access the internet.
  • Guest Network—Provides separate access for guests while securing the host network.
  • Smooth HD Streaming—Supports IGMP Proxy/Snooping, Bridge and Tag VLAN to optimize IPTV streaming.
  • IPv6 Supported—Compatible with the IPv6 (the latest Internet Protocol version 6).

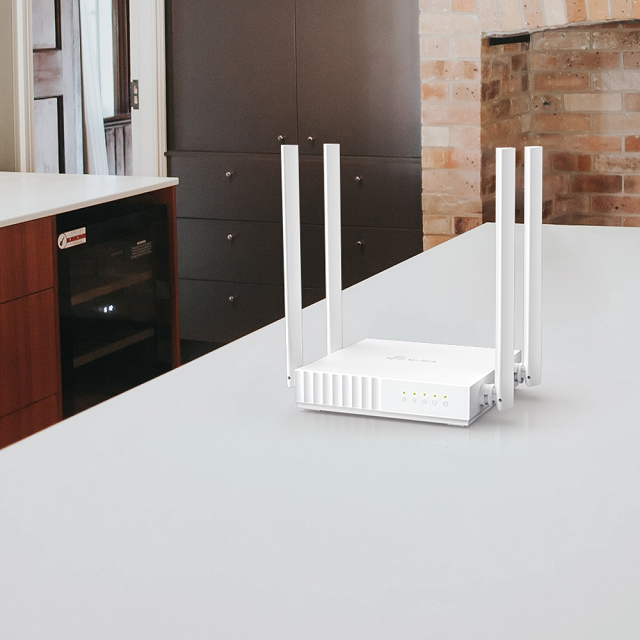

  • Compact and Mountable—Designed to conserve space and complement any décor.


Specifications:


WIRELESS
StandardsWi-Fi 5
IEEE 802.11ac/n/a 5 GHz
IEEE 802.11n/b/g 2.4 GHz
WiFi SpeedsAC750
5 GHz: 433 Mbps (802.11ac)
2.4 GHz: 300 Mbps (802.11n)
WiFi Range2 Bedroom Houses
4× Fixed Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas
WiFi CapacityMedium
Dual-Band
Allocate devices to different bands for optimal performance
Working ModesRouter Mode
Access Point Mode
Range Extender Mode
HARDWARE
ProcessorSingle-Core CPU

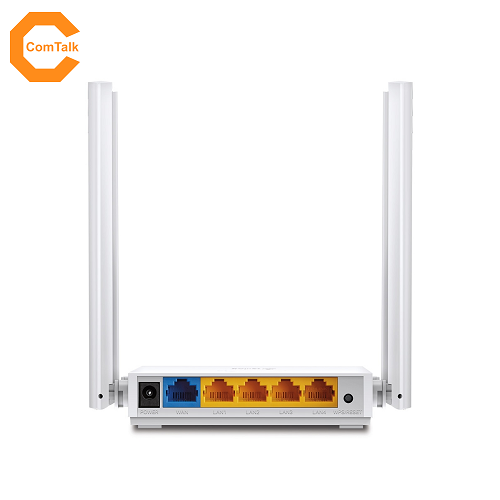

Ethernet Ports1× 10/100 Mbps WAN Port
4× 10/100 Mbps LAN Ports
ButtonsWPS/Reset Button
Power9 V ⎓ 0.6 A
SECURITY
WiFi EncryptionWEP
WPA
WPA2
WPA/WPA2-Enterprise (802.1x)
Network SecuritySPI Firewall
Access Control
IP & MAC Binding
Application Layer Gateway
Guest Network1× 5 GHz Guest Network
1× 2.4 GHz Guest Network
SOFTWARE
ProtocolsIPv4
IPv6
Parental ControlsURL Filtering
Time Controls
WAN TypesDynamic IP
Static IP
PPPoE
PPTP
L2TP
Quality of ServiceQoS by Device
NAT ForwardingPort Forwarding
Port Triggering
DMZ
UPnP
IPTVIGMP Proxy
IGMP Snooping
Bridge
Tag VLAN
DHCPAddress Reservation
DHCP Client List
Server
DDNSNO-IP
DynDNS
ManagementTether App
Webpage
Check Web Emulator>
PHYSICAL
Dimensions (W×D×H)4.5 × 4.2 × 1.0 in
(115 × 106.7 × 24.3 mm)

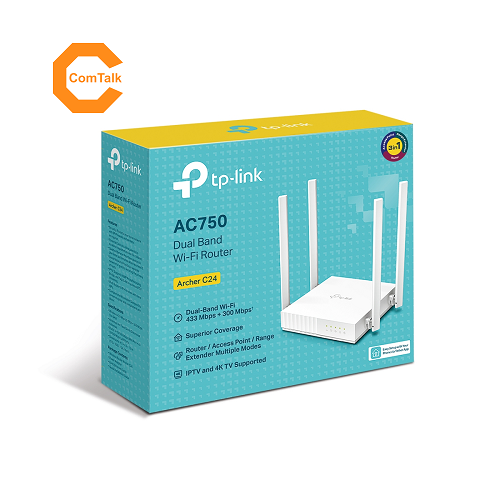

Package ContentsWi-Fi Router Archer C24
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
OTHER
System RequirementsInternet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser

Cable or DSL Modem (if needed)

Subscription with an internet service provider (for internet access)
CertificationsFCC, CE, RoHS
EnvironmentOperating Temperature: 0℃~40℃ (32℉ ~104℉)
Storage Temperature: -40℃~60℃ (-40℉ ~140℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
TEST DATA
WiFi Transmission PowerCE:
<20dBm(2.4GHz)
<23dBm(5GHz)
WiFi Reception Sensitivity5GHz:
11a 54M: -76dBm;
11ac VHT20 MCS8: -71dBm;
11ac VHT40 MCS9: -66dBm;
11ac VHT80 MCS9: -62dBm
2.4GHz:
11g 54M: -76dBm;
11n HT20 MCS7: -73dBm;
11n HT40 MCS7: -71dBm

Warranty:
3 Years
