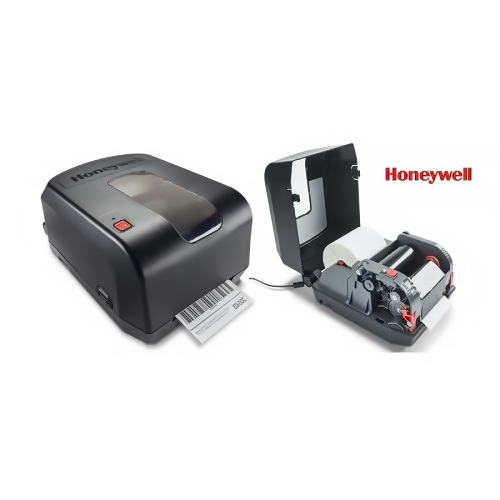

Easy to install and ready to print quickly, the streamlined PC42t thermal transfer desktop printer is an economical choice for media up to 110 mm (4.3 in) wide. Able to accommodate large ribbon sizes, the PC42t printer can print longer before needing media replenishment, thus improving the productivity of labeling workflows.

Available in either 12.7 mm (0.5 in) or 25.4 mm (1 in) ribbon core configurations, the PC42t printer supports media as wide as 110 mm (4.3 in) and fits right into existing printing environments. The 25.4 mm configuration is compatible with ribbon lengths up to 300 m (984ft) — more than four times the length of competitive offerings. With
support for longer ribbons, downtime is reduced and ribbons can be shared with larger printers to provide increased media flexibility.

Highlights:

• An economical solution for light-duty thermal printing applications
• Flexible Media Support
• Well Connected

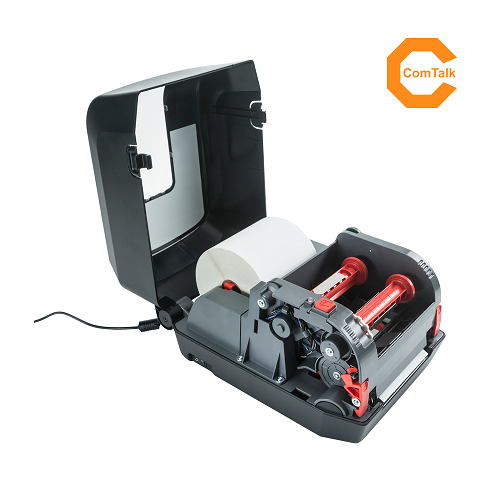

• Simple to Reload and Maintain
• Multilingual

Specifications:

MECHANICAL

Dimensions (LxWxH)
297 mm x 226 mm x 177 mm (11.7 in x 8.9 in x 7.0 in)

Weight
2.5 kg (5.5 lbs)

MEDIA

Max. Media Diameter
127.0 mm (5.0 in)

Media Core Sizes
25.4 mm (1.0 in), 38.1 mm (1.5 in)

Media Width
25.4 mm (1.0 in) to 110 mm (4.3 in)

Min. Label Length
9.6 mm (0.3 in)

RIBBON

Ribbon Support
Coated Side Out

Max. Ribbon Diameter
68.0 mm (2.7 in)

Ribbon Core Sizes
12.7 mm (0.5 in), 25.4 mm (1.0 in)

Ribbon Width
25.4 mm (1.0 in) to 109.2 mm (4.3 in)

Max. Ribbon Length
25.4 mm (1.0 in) core: 300.0 m (984.0 ft), 12.7 mm (0.5 in) core: 75.0 m (246.0 ft)

PRINTING

Print Resolution
8.0 dpmm (203 dpi)

Max. Print Speed
101.6 mm/s (4.0 ips)

Max. Print Width
104.1 mm (4.1 in)

COMMUNICATIONS

Standard Interfaces
USB Device, USB Host

Options
Factory Installed: Internal Ethernet, serial port

Protocols
Network: TCP/IP-suite (TCP, UDP, ICMP, IGMP), DHCP, BOOTP, LPR, FTP, web page and Telnet 9100, IPv4
Serial Flow Control: XON/XOFF, RTS/CTS

USER INTERFACE

Display
1 Feed Button and LED Display

Web Page Languages
English and Simplified Chinese (Default), Spanish, Portuguese, Russian, Korean, Japanese, Thai

GRAPHICS & BAR CODES

Native Graphic Formats
1-bit BMP, GIF, PCX, PNG

Barcode Symbologies
All major 1D and 2D symbologies are supported, including Aztec, Code 16K, Code 49, Data Matrix, Dot Code, EAN-8, EAN-13, EAN, UCC 128, Grid Matrix, HIBC 39, HIBC 128, MaxiCode, MSI (modified Plessey), PDF417, Micro PDF417, Planet, Plessey, Postnet, QR-Code, RSS-14 (variations)

SOFTWARE

Printer Command Languages
Direct Protocol (DP), ZSim (ZPL II®), ESim (EPL)

Drivers
BarTender®, InterDriver Windows® Printer Driver

Character Sets
English & Extended Latin, Arabic, Baltic & Baltic Rim, Cyrillic, Greek, Hebrew, Thai, Turkish, Vietnamese, & more with Monotype™ Universal Font Scaling Technology (UFST) & WorldType Layout Engine (WTLE)

ENVIRONMENTAL

Operating Temperature
+5°C to +40°C (+41°F to +104°F) 10 to 80% RH non-condensing

Storage Temperature
-40°C to +60°C (-40°F to +140°F) @ 10 to 90% RH

ELECTRICAL

Input
100-240V AC @ 50-60 Hz, 1.5 A

Output
24V DC, 2.5 A

MEMORY

Standard
64 MB Flash, 64 MB SDRAM

Optional
Up to 32 GB (via user-supplied USB thumb drive) formatted as FAT16 or FAT32

OPTIONS

Factory Installable
Ethernet, serial port

APPROVALS

Regulatory
UL, cUL, cULus, CE, FCC Class A, D Mark CCC, KCC, RCM

Safety
North America: UL & cUL Listed, UL 60950-1 Europe: D Mark, EN 60950-1; CE Mexico: NYCE Certified, NOM 19 Other Countries: IEC 60950-1

EMC
USA FCC Title 47, Part 15, Subpart A, Class A; Europe EMC Directive (EN55022 Class A + EN55024); CISPR22

Part Number: PC42TPE01215

Warranty:

One Year Standard Warranty; Additional Honeywell Repair Services Packages Available
