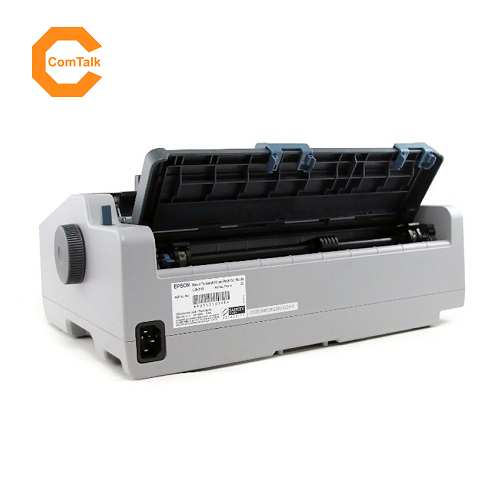

Epson LQ-310 Dot Matrix Printer

Product Code: PRN-EPS-LQ310

MYR879.00

Color

Brand: Epson

  • Share

Get shipping estimates

Country
State
Shipping Method

Building on its reputation as the world’s top dot matrix printer maker, Epson has introduced the Epson LQ-310 as the next-generation narrow carriage, 24-pin model that replaces the legendary LQ-300, featuring vastly improved speed and reliability.

Highlights:
  • Narrow carriage 24-pin SIDM
  • High 416 CPS print speed at 12CPI
  • 10,000 power on hour MTBF
  • USB, Serial and Parallel ports

Features:

Extreme Speed
The Epson LQ-310 features a 128KB input data buffer memory that is double that of its predecessor. This enables it to achieve high printing speeds of up to 416 characters per second at 12 CPI – or almost 40% faster than the model it replaces.

Improving on Legendary Reliability
The Epson LQ-310 also has an improved reliability rating that is an astonishing 67% higher than its predecessor that was already renowned for its dependability. The LQ-310 is rated for a mean time before failure (MTBF) of 10,000 POH (power on hours) compared to the older model’s 6,000 POH.

High Impact for Multiple Carbon Copies
Achieve optimum efficiency with the LQ-310’s ability to create up to a 4-part form printout (1 original + 3 copies).

Flexible Connectivity
With built-in USB, Serial and Parallel Interface options, the LQ-310 is able to connect to just about any output device you need it for.

Specifications:

Printing Technology:


Print Method:Impact dot matrixControl Panel:4 switches and 5 LEDsPrint Direction:Bi-direction with logic seekingNumber of Pins in Head:24 pinsControl Code:ESC/P2 and IBM PPDS emulation

Print Speed:


High Speed Draft:10cpi: 347 cps
12cpi: 416 cpsDraft:10cpi: 260 cps
12cpi: 312 cps
15cpi: 390 cps
(Condensed) 17cpi: 222 cps
(Condensed) 20cpi: 260 cpsLetter Quality:10cpi: 86 cps
12cpi: 103 cps
15cpi: 129 cps
(Condensed) 17cpi: 147 cps
(Condensed) 20cpi: 172 cps

Reliability:


MTBF:Approx. 10,000 POH (25% Duty)Printhead Life:Approx. 400 million strokes/wireMean Print Volume Between Failure (MVBF):Approx. 20 million lines (Except print head)

Print Characteristics:


Character Sets:Italic table, PC437 (US Standard Europe), PC850 (Multilingual), PC860 (Portuguese), PC861 (Icelandic), PC863 (Canadian-French), PC865 (Nordic), Abicomp, BRASCII, Roman 8, ISO Latin 1, PC 858, ISO 8859-15Bitmap Fonts:Epson Draft: 10, 12, 15 cpi; Epson Roman & San Serif: 10, 12, 15 cpi, Proportional; Epson Courier: 10, 12, 15 cpi; Epson Prestige: 10, 12 cpi; Epson Script, OCR-B, Orator & Orator-S: 10cpi; Epson Script C: ProportionalScalable Fonts:Epson Roman, Epson San Serif, Epson Roman T & Epson San Serif H: 10.5pt., 8pt. - 32pt. (every 2pt.)Barcode:EAN-13, EAN-8, Interleaved 2 of 5, UPC-A, UPC-E, Code 39, Code 128, Postnet

Paper Path:


Manual Insertion:Rear in, Top outPush Tractor:Rear in, Top out

Paper Media:


Cut Sheet (Single Sheet):Length: 100 ~ 364 mm (3.9 ~ 14.3")
Width: 100 ~ 257 mm (3.9 ~ 10.1")
Thickness: 0.065 ~ 0.14 mm (0.0025 ~ 0.0055")Cut Sheet (Multi-part Forms):Length: 100 ~ 364 mm (3.9 ~ 14.3")
Width: 100 ~ 257 mm (3.9 ~ 10.1")
Thickness: 0.12 ~ 0.32 mm (0.0047 ~ 0.0126") (Total)Envelope (No.6):Length: 92 mm (3.6"), Width: 165 mm (6.5"), Thickness: 0.16 ~ 0.52 mm (0.0063 ~ 0.0205") (Total)Envelope (No.10):Length: 105 mm (4.1"), Width: 241 mm (9.5"), Thickness: 0.16 ~ 0.52 mm (0.0063 ~ 0.0205") (Total)Continuous Paper (Single Sheet):Length: 101.6 ~ 558.8 mm (4.0 ~ 22.0")
Width: 101.6 ~ 254.0 mm (4.0 ~ 10.0")
Thickness: 0.065 ~ 0.32 mm (0.0025 ~ 0.0126") (Total)Continuous Paper (Multi-part Forms):Length: 101.6 ~ 558.8 mm (4.0 ~ 22.0")
Width: 101.6 ~ 254.0 mm (4.0 ~ 10.0")
Thickness: 0.065 ~ 0.32 mm (0.0025 ~ 0.0126") (Total)Roll Paper:Width: 216 mm (8.5"), Thickness: 0.07 ~ 0.09 mm (0.0028 ~ 0.0035")

General:


Memory Buffer:128KB

Supported OS and Applications:


Supported OS:Windows 95 / 98 / 2000 / Me /XP / Vista / 7 / 8 / 8.1 / 10Utility:Epson Status Monitor 3: Microsoft® Windows® 2000 / XP / 7 / 8 / 8.1 / 10
Epson Printer Setting: Microsoft® Windows® 2000 / XP / 7 / 8 / 8.1 / 10

Dimensions and Weight:


Dimensions (W x D x H):362 x 275 x 154 mmWeight:4.1kg

Consumables:


Ribbon Cartridge Black:Approx. 2.5 million characters (LQ 10cpi, 48 dots/character) - C13S015639

Options:


Options:Fabric Ribbon Cartridge (Black) - S015634

Environmental Conditions (Operating):


Temperature:5 ~ 35°CHumidty:10 ~ 80 % RH

Acoustic Noise:


Acoustic Noise:Approx. 53 dB(A) (ISO 7779 pattern)

Interface:


Standard:Bi-directional parallel interface (IEEE-1284 nibble mode supported)
USB 2.0 Full-Speed
Serial
