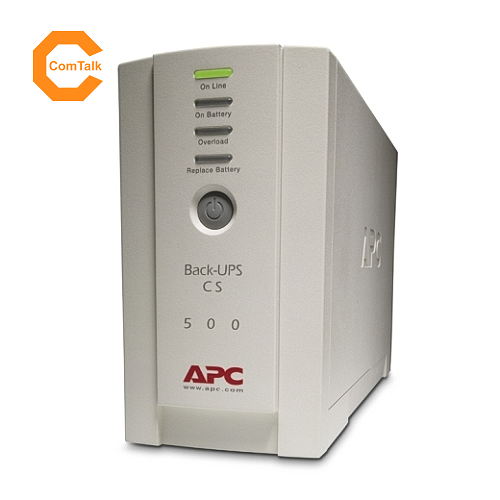

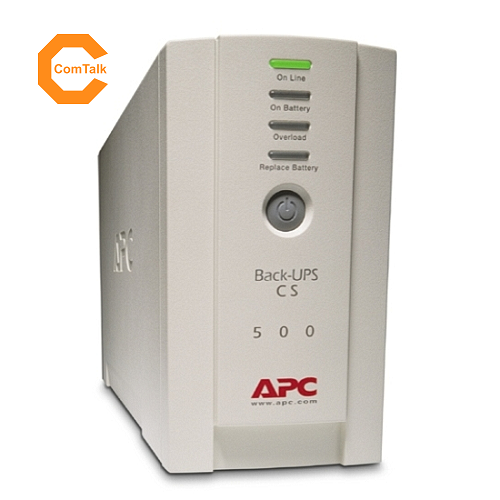

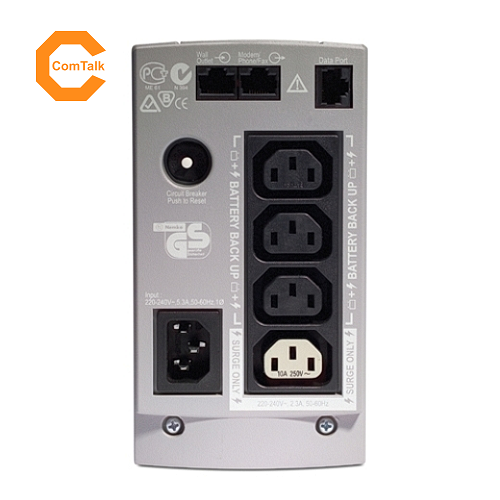

APC Back-UPS CS 500VA BK500EI (230V)

Product Code: UPS-APC-BK500EI

MYR639.00

Color

Brand: APC

  • Share

APC Back-UPS CS 500VA provides professional-grade power protection for office and home office systems. Battery powered & surge protected power outlets, built-in phone/fax/modem line (DSL compatible) protection, safe system shutdown software with sophisticated power management features and pro-active audio-visual status indicators ensure office systems and their valuable data are protected from dangerous power surges, spikes and blackouts. Serial or USB connectivity gives users more flexibility making installation quicker and easier. Easy access to a hot-swappable, user-replaceable battery also makes servicing the Back-UPS CS hassle-free. These features along with its classic styling make the Back-UPS CS a perfect choice for protecting your important office and home office systems.



Highlights:
  • Input Connections - IEC 60320 C14
  • Battery and surge protected outlets
  • Safety-agency approved
  • LED status display
  • Battery failure notification
  • Intelligent battery management



Specifications:

Output

Max Configurable Power (Watts)
300 Watts / 500VA
Output Frequency (sync to mains)
47 - 63 Hz Sync to mains, 50/60 Hz +/- 1 Hz Unsynchronised
Topology
Standby
Waveform type
Stepped approximation to a sinewave
Transfer Time
6 ms typical : 10 ms maximum

Input

Input frequency
47 - 63 Hz, 50/60 Hz +/- 3 Hz Auto-sensing
Input voltage range for main operations
160 - 300 Adjustable, 180 - 266V
Number of Power Cords
2

Batteries & Runtime

Battery type
Lead-acid battery
Typical recharge time
8hour(s)
Nominal Battery Voltage
12 V
Replacement Battery
Expected Battery Life (years)
4 - 6
RBC Quantity
1
Battery Charge Power (Watts)
10 Watts
Battery Volt-Amp-Hour Capacity
83

Communications & Management

Interface Port(s)
Optional Simple Signalling RS232 cable, USB
Control panel
LED status display with on line : on battery : replace battery and overload indicators
Audible Alarm
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Surge Protection and Filtering

Surge energy rating
310Joules
Data Line Protection
RJ45 analog phone line for phone/fax/modem/DSL
Filtering
Full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical

Maximum Height
165MM, 16.5CM
Maximum Width
91MM, 9.1CM
Maximum Depth
284MM, 28.4CM
Net Weight
6.32KG
Shipping weight
7.05KG
Shipping Height
178MM, 17.8CM
Shipping Width
241MM, 24.1CM
Shipping Depth
368MM, 36.8CM
Color
Beige
Master Carton Units
1.0
Units per Pallet
48.0
SCC Codes
10731304016356

Environmental

Operating Temperature
0 - 40 °C
Operating Relative Humidity
0 - 95 %
Operating Elevation
0 - 3048meters
Storage Temperature
-15 - 45 °C
Storage Relative Humidity
0 - 95 %
Storage Elevation
0 - 15240meters
Audible noise at 1 meter from surface of unit
40.0dBA
Online thermal dissipation
24.0BTU/hr

Conformance

Approvals
C-Tick, CE, EN 50091-1, EN 50091-2, GOST, VDE
Equipment protection policy
Lifetime : 100000 euros, Lifetime : 50000 GBP
Standard warranty
2 years repair or replace

Sustainable Offer Status

RoHS
Compliant


Note: This item only can be shipped to West Malaysia. Kindly contact seller to ask for shipping fee to East Malaysia. Oversea country shipping not available.
