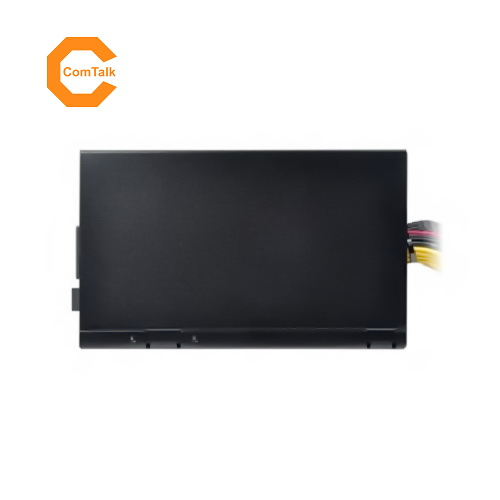

Thermaltake Litepower 450W Power Supply Unit (PSU)

Product Code: PSU-TMT-LP450W

MYR149.00

Color

Brand: Thermaltake

  • Share

Get shipping estimates

Country
State
Shipping Method

Highlights:

  • Complies with latest ATX 12V V2.2 Standard for utmost reliability and compatibility
  • Robust and dedicated dual +12V output provides superior performance under all types of system loading.
  • Active PFC to improve energy efficiency and provide reliable power.

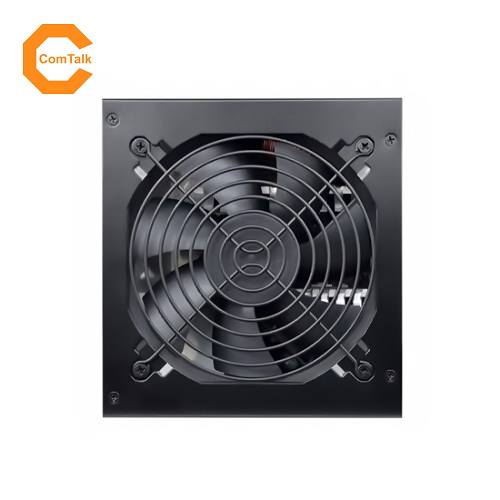

  • Ultra-quiet 120mm cooling fan delivers excellent airflow.
  • Extra long EPS/ATX 12V 4+4pin CPU cable support full tower chassis.
  • Intel & AMD CPU compliant.
  • Nvidia & ATI/AMD graphic card compatible.
  • Dimension (W/H/D): 150mm x 85.1mm x 141mm.
  • High reliability: MTBF>100,000 hours.
  • Built-in industry grade protections: Over Current, Over Voltage, Over Power and Short-Circuit protection
  • Safety / EMI Approvals: TUV, CE, GOST
  • Ultra-quiet 120mm cooling fan delivers excellent airflow.
  • Black coating design, the suitable power supply for your stylish black coating chassis.
  • 4+4-Pin EPS/ATX connector enables support for latest Intel and AMD processors today.
  • Next generation graphic cards with 6+2P(8P) PCI Express connector for 450W.



Specifications:

LT-450P 450W W/Active PFC

AC INPUT

Input Voltage: 230V
Input Current: 230Vac/4Amax
Frequency: 50Hz

DC OUTPUT+3.3V+5V+12V1+12V2-12V+5Vsb
Max Output Current20A18A14A13A0.5A2.5A
Max Output Power130W324W6W12.5W

The +3.3V & +5V & +12V1 & +12V2 combined output power shall not exceed 385W.



Voltage SourceOver Current Protection

Over Voltage Protection

Protection Point (Max.)Protection Point
+3.3V

(Under normal or overload conditions, no output shall continuously provide more than 240 VA under any conditions of load including output short circuit.)

4.3 Vmax.

+5V

7.0 Vmax.

+12V

15.6 Vmax.

Short Circuit Protection: The power supply shall shut down and latch off for shorting the +3.3 VDC, +5 VDC, +12 VDC rails to return or any other rail.

Over Power Protection: The power supply shall be shut down and latch off, if the wattage of the power supply is 120% ~ 160% over continuous power.



Connector TypeConnectors & Cable length

20+4pin

1 x 20+4pin Main Connector (400mm)

4+4pin EPS / ATX +12V
Power Connector

1 x EPS / ATX 4+4pin +12V Power Connector (550mm)

Molex & FDD Connector

3 x Molex & 1 x FDD connectors (400mm + 150mm + 150mm + 150mm)
2 x Molex connectors (400mm + 150mm)

SATA Connector

4 x S-ATA connectors (400mm + 150mm + 150mm + 150mm)

6+2pin PCI-E Graphic card connector

1 x 6+2pin PCI-E connector (400mm)

6pin PCI-E Graphic card connector

1 x 6pin PCI-E connector (400mm)



P/NLT-450P
TypeATX 12V 2.2
Max. Output Capacity450W
ColorBlack
Dimension150mm x 85.1mm x 141mm
PFC (Power Factor Correction)W/Active PFC
Power Good Signal“Power Good” signal rise time is within 1ms.
Hold Up Time16msec (minimum) at 80% of Max. load at 115/230 Vac input.
Input current230Vac/4Amax
Input Frequency Range60Hz / 50Hz
Input VoltageOnly 230V
Operating Temperature10°C to +40°C
Operating HumidityTo 85% relative humidity
Storage Temperature-20°C to +70°C
Storage HumidityTo 95% relative humidity
Cooling System120mm Fan: 1600-1900 RPM
Efficiency70% typical at nominal line, maximum load.
MTBF100,000 hrs minimum
Safety ApprovalTUV, CE, Gost
PCI-E adaptor cable6pin PCI-E x 1, 6+2pin PCI-E x 1

* Specifications are subject to change without notice.
* The product picture(s) is only for your reference, it may differ from the actual product.



Warranty:

2 Years
