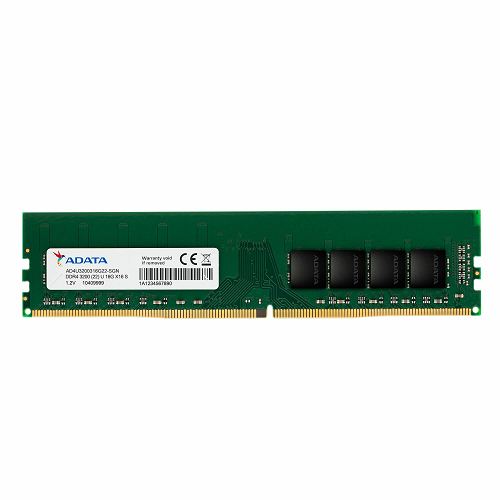

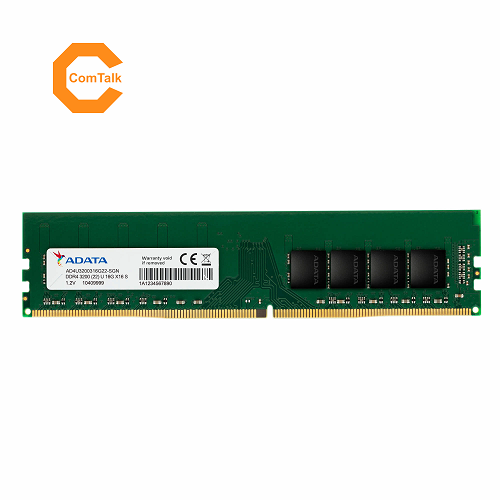

ADATA RAM DDR4 3200 DIMM

Product Code: RAM-ADT-D4UD3200

MYR109.00

Size

Brand: ADATA

  • Share

Get shipping estimates

Country
State
Shipping Method

ADATA Premier DDR4 3200 unbuffered-DIMM memory is the latest upgrade solution that supports Intel/AMD newest platforms for faster data transfer and enhanced power efficiency. Utilizing a 288-pin design, operating voltage has been reduced from 1.5V on DDR3 to 1.2V, which not only helps save power by 20%, but also boosts transfer bandwidth speed to 25.6GB/s. Every chip in ADATA memory modules meets strict JEDEC and RoHS standards, ensuring compatibility, stability, and environmentally friendly products.


Highlights:

  • Complies with JEDEC standards
  • RoHS compliant
  • Supports Intel® Core™ 8th/9th/10th series and AMD® ZEN 2nd 3rd Ryzen™ series*

Specifications:

Module TypeU-DIMM
Form FactorStandard 1.23" height
Memory TypeDDR4
StandardJEDEC
Pin Count288-pin
Density8GB / 16GB / 32GB
Speed3200MHz
Power SupplyVDD and VDDQ = 1.2V±0.06V
DRAM activation power supplyVPP= 2.5V (+0.25V / -0.125V)
DRAM spec/VCCDDR4 STD 1.2V
Operating temperature0°C to 85°C
WarrantyLimited lifetime warranty
Note* Memory Part Number Decoder, click here to learn more.
