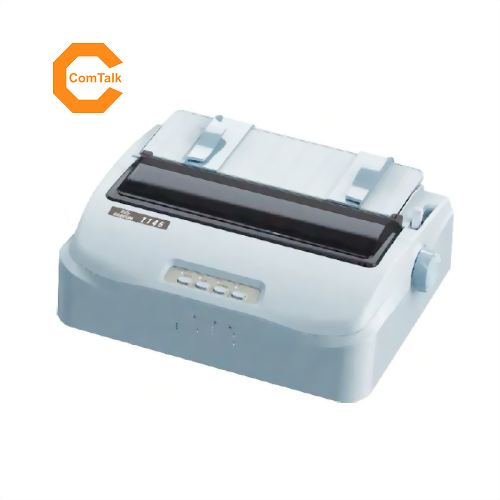

Tally Dascom 1145 Dot Matrix Printer

Product Code: PRN-TD-1145

MYR919.00

Color

Brand: Tally Dascom

  • Share

Get shipping estimates

Country
State
Shipping Method

This new 80-column dot matrix printer is designed to meet the requirements of high definition and cost-effective

printing in the market.

A great deal of innovative technologies and new designs are applied such as horizontal print position tracking,

anti paper-jam paper path design, and high speed printing, making the printer extremely competitive.

Additionally, a roll paper stand is available upon request for Point of Sales applications.



Highlights:

  • 80-column, advanced 24-pin printer
  • Up to 450 CPS speed
  • Ideal for front and back office applications
  • USB 2.0 interface as standard
  • 9 mil characters long life ribbon
  • Up to 7-ply copy capability
  • Intelligent print position tracking sensor
  • Wide range of optional interfaces
  • Large 256 KB buffer size



Specifications:

Print Speed

450 cps (HS Draft); 300 cps (Draft), 200 cps (NLQ), 100 cps (LQ) at 10 cpi

Print Method

Serial Impact Dot Matrix

Resolution

Up to 360 x 360 dpi

Throughput (ECMA 132)

296 pages per hour

Character Density

10, 12, 15, 16.6, 17.1, 20, 24 cpi, Proportional Spacing

Line Density

1, 2, 3, 4, 6, 8 lpi

Printhead Life

400 Million Strokes per pin

Memory

up to 256 KB

Standard Connectivity

USB 2.0

Optional Connectivity

Parallel IEEE 1284, Serial RS-232C, Ethernet 10/100, WIFI, Bluetooth

Standard Emulation

Epson ESC P/2, IBM ProPrinter (2390 Plus) or PPDS

Fonts

HS Draft, Draft, Roman, Sans Serif, Courier, Prestige, Script, Orator, Gothic, Souvenir, OCR-A/B, 8 Barcodes

Consumables

Black Ribbon: 9 million characters

Standard Paper Handling

Push tractor and single sheet tray

Paper Type

Continuous forms, cut sheet

Number of Copies

Original + 6 (7-part forms)

Paper Weight

52-100 gsm

Paper Size

Width: 95 to 267 mm
Length: 114 to 362 mm (Cut sheet); 114 to 559 mm (Fanfold)

Physical Weight

5.5 kg

Physical Size

369 x 283 x 130 mm (WxDxH)

Power Voltage

120 or 230 V

Power Frequency

50Hz to 60Hz

Power Consumption

less than 1.4 W in Sleep Mode

Reliability MTBF

12,000 hours

Drivers

Windows 2003/2008/2012 Server, XP, Vista, Windows 7/8.1/10

Temperature

+5°C to +35°C

Humidity

10% to 80% (not condensing)

Acoustic

< 57 dB(A) (ISO 7779)

Warranty

1 year warranty inclusive of printhead

Note

For OCR applications it is recommended that your readers are tested with print samples supplied by DASCOM prior to purchase. Paper is a highly variable medium and should be tested prior to purchase. The quoted consumable life is the average for the printer when used under normal operation conditions.

Part Number: 28-828-0000



Warranty:

1 Year
