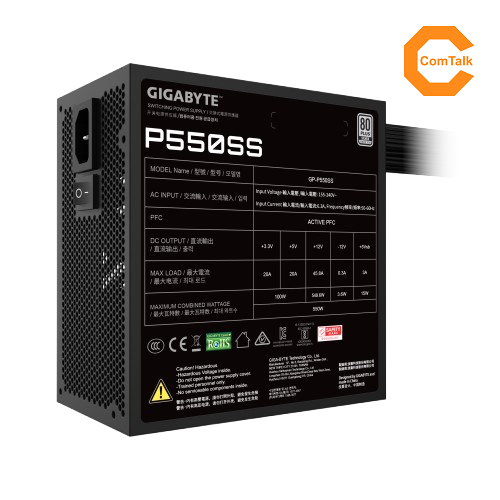

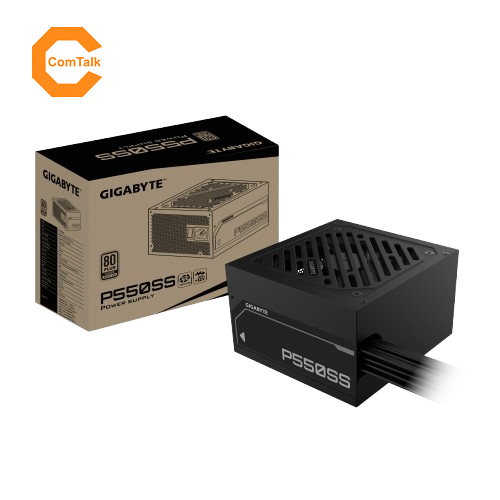

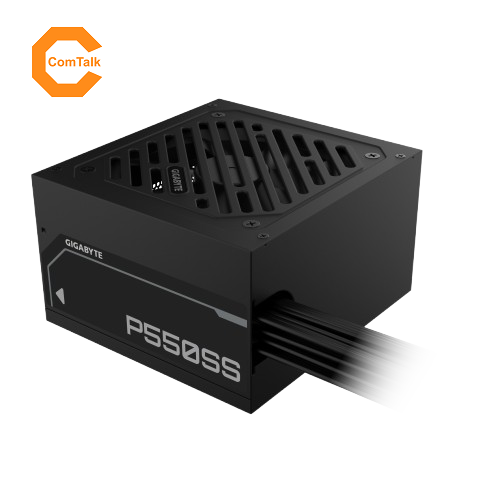

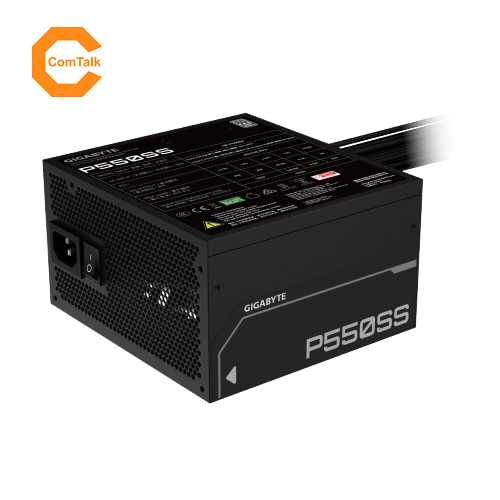

Gigabyte P550SS Power Supply Unit 550W (PSU) | Black | 80 PLUS Silver Certified
Product Code: PSU-GIB-P550SS
MYR199.00
Color
Brand: Gigabyte
Get shipping estimates
| Country | ||
| State | ||
| Shipping Method | ||
|
|
||
Highlights:
- 80 PLUS Silver certified (230V EU)
- Support Intel ATX 3.0 standard (compatible with ATX 3.1)

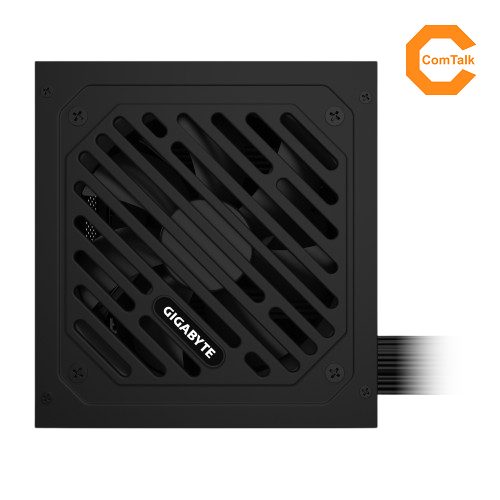

- 120mm Fluid Dynamic Bearing (FDB) Fan
- Flat cable design
- Powerful single +12V rail
- OVP/OPP/SCP/UVP/OCP/OTP protection
- 3 years warranty (Adjusted according to different regions)
Specifications:
Model
GP-P550SS
Type
Intel Form Factor ATX 12V v3.0 (compatible with ATX 3.1)
PFC
Active PFC (>0.9 typical)
Input Voltage
155-240 Vac
Input Current
6.3A
Input Frequency
50-60 Hz
Output Capacity
550W
Dimensions
150 x 140 x 86 mm
Fan Type
120mm Fluid Dynamic Bearing (FDB) fan
80 PLUS
Silver
Efficiency
90% at typical load (230V EU)
MTBF
>100,000 hours
Protections
OVP/OPP/SCP/UVP/OCP/OTP
Power Good Signal
100-150ms
Hold Up Time
>16ms
Cable Type
Flat, All black
Connectors
ATX/MB 20+4 Pin x 1 : 600mm*1
CPU/EPS 4+4 Pin x 1 : 650mm*1
PCI-e 6+2 Pin x 2 : 600mm+120mm*1
SATA x 3 + 4 Pin Peripheral x 1 : 500mm+120mm+120mm+120mm*1
SATA x 2 + 4 Pin Peripheral x 2 : 500mm+120mm+120mm+120mm*1
Warranty:
3 Years
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
