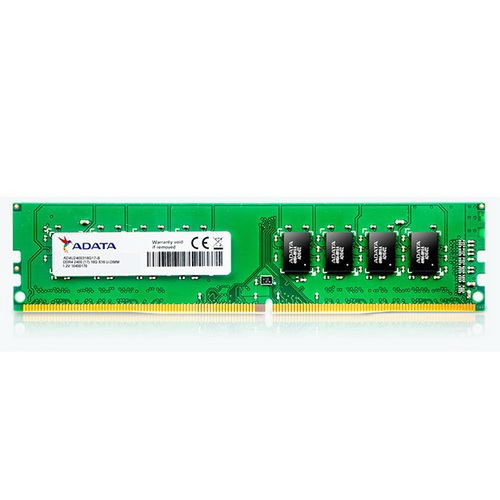

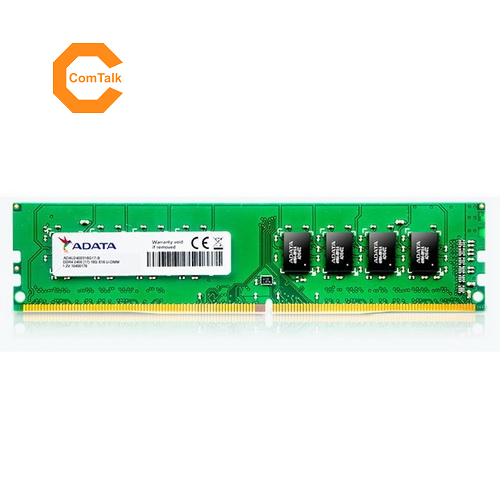

ADATA Premier DDR4 2666 unbuffered-DIMM memory is the latest upgrade solution that supports Intel's newest platforms for faster data transfer and enhanced power efficiency. Utilizing a 288-pin design, operating voltage has been reduced from 1.5V on DDR3 to 1.2V, which not only helps save power by 20%, but also boosts transfer bandwidth speed to 21.3GB/s. Every chip in ADATA memory modules meets strict JEDEC and RoHS standards, ensuring compatibility, stability, and environmentally friendly products.
Highlights:
- Complies with JEDEC standards
- RoHS compliant
- Supports Intel Skylake-X and Kaby Lake-X CPU
- Lifetime Warranty
Specifications:
| Module Type | U-DIMM |
| Form Factor | standard 1.23" height |
| Memory Type | DDR4 |
| Standard | JEDEC |
| Interface | 288-pin |
| Density | 4GB / 8GB / 16GB / 32GB |
| Speed | 2666MHz |
| CAS Latency | CL 19-19-19 |
| Power supply | VDD and VDDQ = 1.2V±0.06V |
| DRAM activation power supply | VPP= 2.5V (+0.25V / -0.125V) |
| DRAM spec/VCC | DDR4 STD 1.2V |
| Operating temperature | 0°C to 85°C |
| Warranty | Lifetime |
