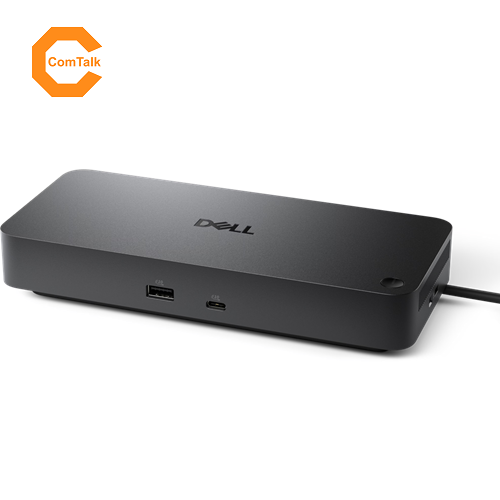

Dell Pro Dock WD25 | Docking Station | Black
Product Code: DKS-DEL-WD25
MYR849.00
Color
Brand: Dell
Get shipping estimates
| Country | ||
| State | ||
| Shipping Method | ||
|
|
||
Boost your productivity with the latest pro dock that offers up to 100W power delivery and a wide variety of connecting options.
Highlights:
- 100W (Dell systems)
- 96W (non-Dell systems)
- 2 x DP1.4
- 1 x HDMI 2.1
- 1 x USB-C 3.2 Gen 2 Multi-function DisplayPort 1.4
- 4 x USB-A 3.2 Gen 2 (10 Gbps)
- 1 x USB-C 3.2 Gen 2 (10 Gbps)
- 1 x RJ45 Ethernet port, 2.5GbE
Specifications:
Technical Information
Connectivity Technology
Wired
Number of Displays Supported
4
Management Features
Host PC Management
MAC address pass-through
PXE Boot
Dock Power Button Sync
Wake-On-LAN
WLAN to LAN switch
Kernel Direct Memory Access (DMA) protection
Dock Management Features
Host PC based firmware update
Firmware update on disconnect
Port Disablement
Device Supported
Notebook
Video Resolution
DP1.4 with Display Stream Compression
4 x WQHD (3440 x 1440) @ 60Hz
3 x WQHD (3440 x 1440) @ 60Hz
2 x 5K (5120 x 2160) @ 60Hz
1 x 6K (6144 x 3456) @ 60Hz
DP1.4 without Display Stream Compression
Up to:
4 x HD (1280x720) @ 60Hz
3 x FHD (1920x1080) @ 60Hz
2 x QHD (2560x1440) @ 60Hz
1 x 4K (3840 x 2160) @ 60Hz
Network & Communication
Ethernet Technology
RJ45 Ethernet port, 2.5GbE

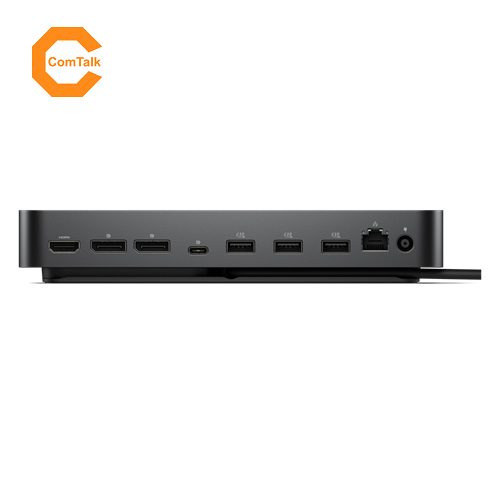

Interfaces/Ports
Interfaces
Video interfaces
2 x DP1.4
1 x HDMI 2.1
1 x USB-C 3.2 Gen 2 Multi-function DisplayPort 1.4
USB Ports (Data Only)
4 x USB-A 3.2 Gen 2 (10 Gbps)
1 x USB-C 3.2 Gen 2 (10 Gbps)
USB Power Delivery
100W (Dell systems)
96W (non-Dell systems)
USB Ports (Power)
4 x USB-A 3.2 Gen 2 (4.5W each)
1 x USB-C 3.2 Gen 2 (15W)
1 x USB-C Multi-function DisplayPort (7.5W)
All deliver power with or without PC
Software
Operating System Supported
Windows 10
Windows 11
Ubuntu
Red Hat Enterprise Linux
ChromeOS
Features / Data Link Protocol
RJ45 Ethernet port, 2.5GbE
Power Description
Maximum Power Supply Wattage
130W
Physical Characteristics
Height
35.3 mm
Width
205 mm
Depth
90mm
Weight (Approximate)
550 g
Miscellaneous
Package Contents
Docking Station
Power Adapter and Power Cord
Documentation (Quick Start Guide, Safety, Environmental, and Regulatory Information)
Kensington Security Slot
Yes
Warranty
3-Year Limited Hardware Warranty with Advanced Exchange
